SKU: FYT1.3/8FM-SKF
SKF FYT1-3/8FM Oval Cast Housing with Grub Screw 1-3/8 inch Insert
SKF FYT1-3/8FM Oval Cast Housing with Grub Screw 1-3/8 inch Insert
Regular price
€77,25
ex VAT
Regular price
Sale price
€77,25
ex VAT
In stock
Price Break
10+
€58,71
20+
€55,41
30+
€54,75
40+
€54,09
50+
€53,43
75+
€52,77
100+
€49,47
200+
€48,81
250+
€48,15
500+
€47,49
1000+
€46,17
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Grub Screws: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Style:
- FYT
- Bolt Hole Centres:
- 330.2mm

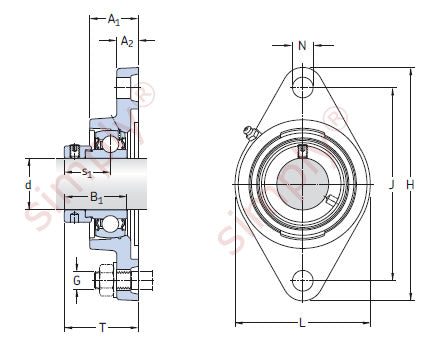

Technical
Technical
| d | 1-3/8 inch |
|---|---|
| A1 | 34.5mm |
| A2 | 33mm |
| B1 | 38.9mm |
| H | 356mm |
| J | 330.2mm |
| L | 96mm |
| N | 34.3mm |
| G | 32mm |
| s1 | 29.4mm |
| T | 50.4mm |
| Static load Cr | 15.3 kN |
| Dynamic load Cor | 25.5 kN |
| Fatigue load limit | 0.655 kN |
| Limiting speed | 5300 rpm |
| Weight | 1.35 kg |
| Housing | Insert |
