SKU: FYT1.7/16TF/VA228-SKF

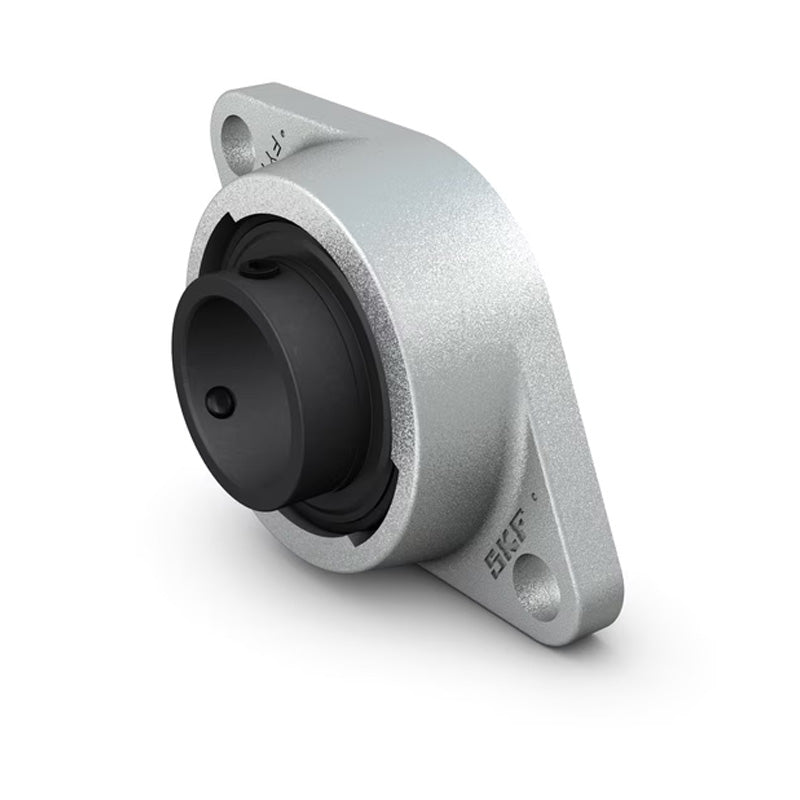

SKF FYT1716TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1-7/16 inch
SKF FYT1716TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1-7/16 inch
Out of stock
Share this product
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 1-7/16 inch |
|---|---|
| A1 | 34.5mm |
| A2 | 13mm |
| B | 42.9mm |
| H | 156mm |
| J | 130.2mm |
| L | 96mm |
| N | 14.3mm |
| G | 12mm |
| T | 46.4mm |
| Static load Co | 15.3 kN |
| Weight | 1.2 kg |
