SKU: FYT5/8FM-SKF
SKF FYT5/8FM Oval Cast Housing with Grub Screw 5/8 inch Insert
SKF FYT5/8FM Oval Cast Housing with Grub Screw 5/8 inch Insert
Regular price
€46,51
ex VAT
Regular price
Sale price
€46,51
ex VAT
Low stock
Price Break
10+
€35,34
20+
€33,36
30+
€32,96
40+
€32,56
50+
€32,17
75+
€31,77
100+
€29,78
200+
€29,39
250+
€28,99
500+
€28,59
1000+
€27,80
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Grub Screws: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Style:
- FYT
- Bolt Hole Centres:
- 76.2mm

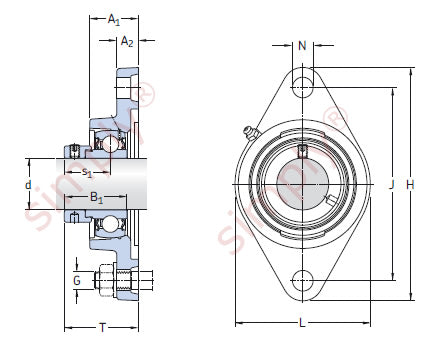

Technical
Technical
| d | 5/8 inch |
|---|---|
| A1 | 23.4mm |
| A2 | 33.5mm |
| B1 | 28.6mm |
| H | 98.5mm |
| J | 76.2mm |
| L | 54mm |
| N | 33.3mm |
| G | 30mm |
| s1 | 22.3mm |
| T | 36.8mm |
| Static load Cr | 4.75 kN |
| Dynamic load Cor | 9.56 kN |
| Fatigue load limit | 0.2 kN |
| Limiting speed | 9500 rpm |
| Weight | 0.34 kg |
| Housing | Insert |
