SKU: FYTJ1.3/4TF-SKF

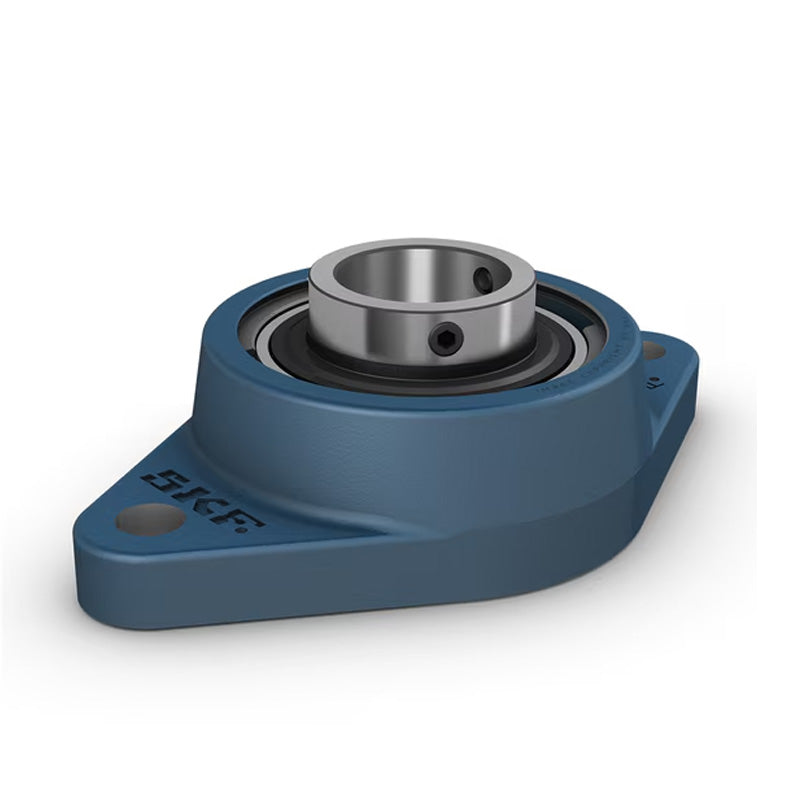

SKF FYTJ1-3/4TF Square Cast Housing with Grub Screw 1-3/4 inch Insert
SKF FYTJ1-3/4TF Square Cast Housing with Grub Screw 1-3/4 inch Insert
Out of stock
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Style:
- FYTJ
- Bolt Hole Centres:
- 148mm

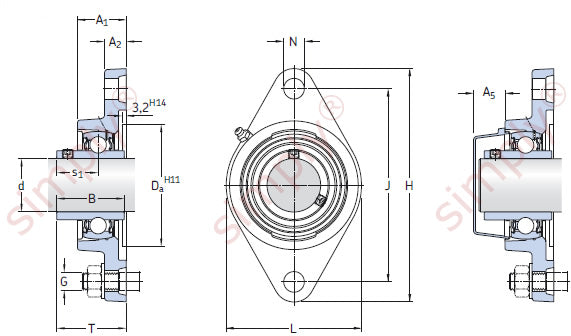

Technical
Technical
| d | 1-3/4 inch |
|---|---|
| A1 | 38mm |
| A2 | 18mm |
| B | 49.2mm |
| Da | 98.4mm |
| H | 188mm |
| J | 148mm |
| L | 108mm |
| N | 19mm |
| G | 16mm |
| s1 | 30.2mm |
| T | 52.2mm |
| Static load Cr | 21.6 kN |
| Dynamic load Cor | 33.2 kN |
| Fatigue load limit | 0.915 kN |
| Limiting speed | 4300 rpm |
| Weight | 2.2 kg |
| Housing | FYTJ509 |
| Insert | YAR209-112-2F |
