SKU: GARSW22-FLURO

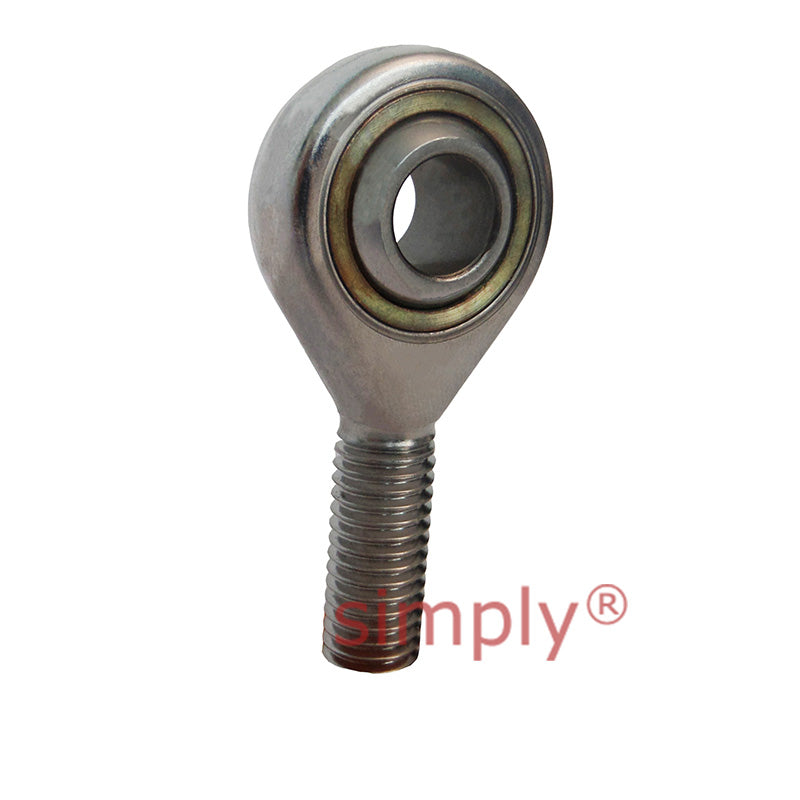

Fluro GARSW22 Right Hand Stainless Steel / PTFE Lined Maintenance Free Male Plain Rod End M22x1.5 Thread
Fluro GARSW22 Right Hand Stainless Steel / PTFE Lined Maintenance Free Male Plain Rod End M22x1.5 Thread
Out of stock
Share this product
Description
Description
Fluro GARSW Series Zinc Plated Steel / PTFE Lined Maintenance Free Male Plain Rod Ends: Rod Ends with male thread made from stainless steel with PTFE liner, maintenance free. For use at high dynamic pressure and tension loads in corrosive environments.
Benefits: Maintenance Free
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M22x1.5
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Thread Length:
- 22x1.5mm
- Inside Diameter:
- 22mm
- Material:
- Stainless Steel / PTFE Lined
Technical
Technical
| Bore Size D | 22mm |
|---|---|
| B | 28mm |
| M | 20mm |
| A | 54mm |
| F | 84mm |
| L | 111mm |
| O | 25.8mm |
| Thread Size G | M22x1.5 |
| GL | 51mm |
| Static Load Co | 100kN |
| Dynamic Load | 97kN |
| Limiting Speed | 170rev/min |
| Approx weight | 0.443kg |
