SKU: GAS05-FLURO

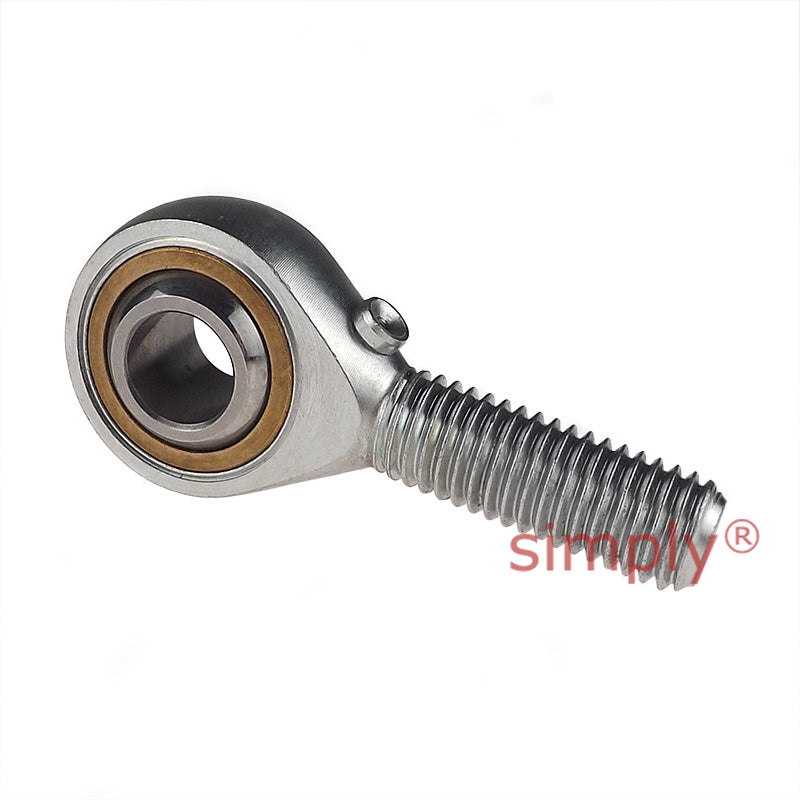

Fluro GAS05 Right Hand Steel / Bronze Male Plain Rod End (without lubrication hole) M5 Thread
Fluro GAS05 Right Hand Steel / Bronze Male Plain Rod End (without lubrication hole) M5 Thread
Out of stock
Share this product
Description
Description
Fluro GAS Series Steel / Bronze Maintenance Required Male Plain Rod Ends: Rod Ends with male thread made from free-cutting or heat-treated steel, zinc plated and fitted with a grease nipple. Especially suited for high speed applications.
Benefits: Grease nipple for easy re-greasing
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M5
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Thread Length:
- 5mm
- Inside Diameter:
- 5mm
- Material:
- Steel / Bronze
Technical
Technical
| Bore Size D | 5mm |
|---|---|
| B | 8mm |
| M | 6mm |
| A | 18mm |
| F | 33mm |
| L | 42mm |
| O | 7.7mm |
| Thread Size G | M5 |
| GL | 19mm |
| Static Load Co | 4.3kN |
| Dynamic Load | 3.3kN |
| Approx weight | 0.013kg |
