SKU: GAS12-FLURO

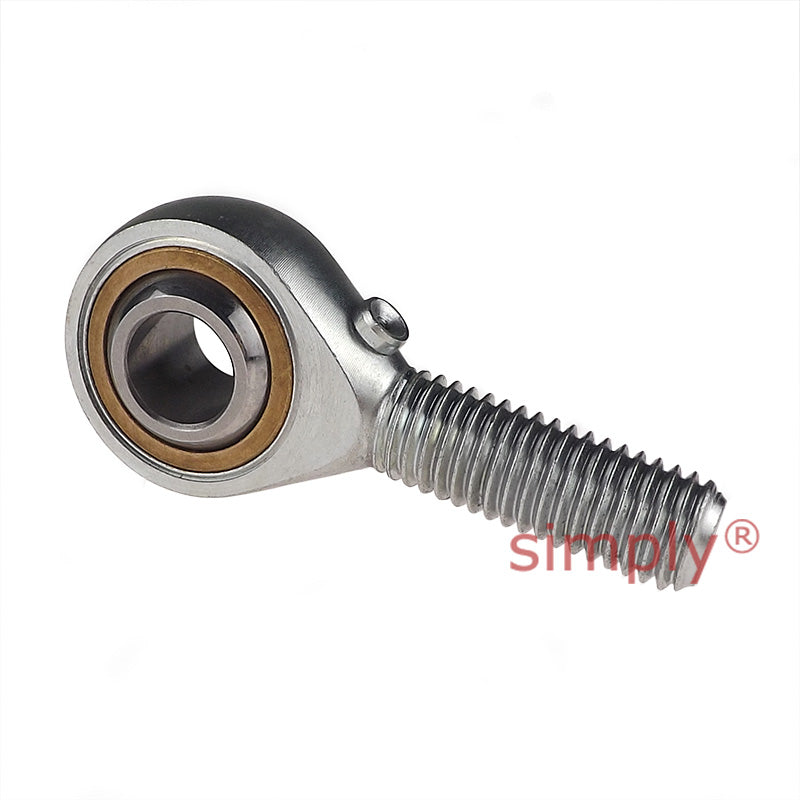

Fluro GAS12 Right Hand Steel / Bronze Male Plain Rod End M12 Thread
Fluro GAS12 Right Hand Steel / Bronze Male Plain Rod End M12 Thread
Regular price
€32,62
ex VAT
Regular price
Sale price
€32,62
ex VAT
In stock
Price Break
3+
€24,78
5+
€23,39
9+
€23,11
19+
€22,83
49+
€22,56
74+
€22,28
99+
€20,88
199+
€20,61
249+
€20,33
499+
€20,05
999+
€19,49
Quantity
Couldn't load pickup availability
Description
Description
Fluro GAS Series Steel / Bronze Maintenance Required Male Plain Rod Ends: Rod Ends with male thread made from free-cutting or heat-treated steel, zinc plated and fitted with a grease nipple. Especially suited for high speed applications.
Benefits: Grease nipple for easy re-greasing
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M12
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Thread Length:
- 12mm
- Inside Diameter:
- 12mm
- Material:
- Steel / Bronze

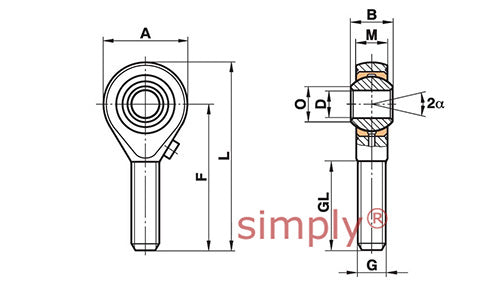

Technical
Technical
| Bore Size D | 12mm |
|---|---|
| B | 16mm |
| M | 12mm |
| A | 32mm |
| F | 54mm |
| L | 70mm |
| O | 15.4mm |
| Thread Size G | M12 |
| GL | 32mm |
| Static Load Co | 23.5kN |
| Dynamic Load | 13.5kN |
| Limiting Speed | 860rev/min |
| Approx weight | 0.087kg |
