SKU: GE12E-CDX

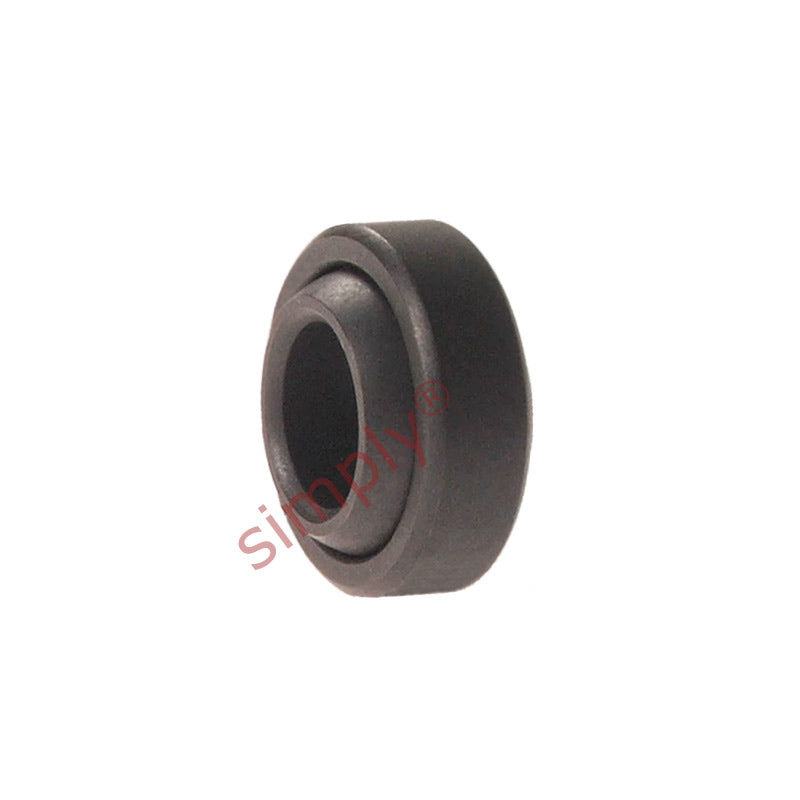

Codex GE12E Spherical Plain Bearing Steel / Steel 12x22x7x10mm
Codex GE12E Spherical Plain Bearing Steel / Steel 12x22x7x10mm
Regular price
€8,17
ex VAT
Regular price
Sale price
€8,17
ex VAT
In stock
Price Break
10+
€6,21
19+
€5,86
29+
€5,79
39+
€5,72
49+
€5,65
74+
€5,58
99+
€5,23
199+
€5,16
249+
€5,09
499+
€5,02
999+
€4,89
Quantity
Couldn't load pickup availability
Description
Description
|
GE..E Series Spherical Plain Bearings: This series is classed as radial spherical plain bearings requiring maintenance. Comprising of sliding contact surfaces of steel against steel these spherical plain bearings are unsealed and require maintenance from time to time in the form of re-lubrication from the sides of the ball. These are metric sized spherical plain bearings. The bearings are manganese phosphated and the sliding contact surface is then treated with a running-in lubricant. This reduces friction and wear during the running-in period. Application: Suitable for heavy static, shock or alternating loads. A characteristic of steel / steel spherical plain bearings is the intentionally fractured outer ring enabling it to be sprung apart to insert the ball, thus care needs to be taken when mounting spherical plain bearings with a fractured or split outer ring, it is essential that the joint is positioned at 90 Degrees to the direction of load. Benefits: Re-lubricate-able, cleanable. |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 22mm
- Width:
- 10mm
Technical
Technical

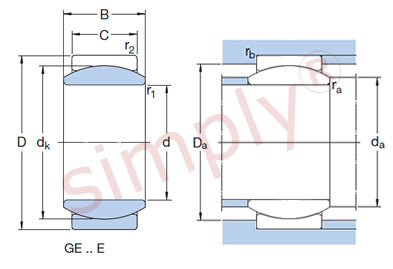

| d | 12mm |
|---|---|
| D | 22mm |
| B | 10mm |
| C | 7mm |
| Max misalignment angle | 10 degrees |
| Dynamic load | 10 kN |
| Static load | 53 kN |
| dk | 18mm |
| r1 min | 0.3mm |
| r2 min | 0.3mm |
| da min | 13.8mm |
| da max | 15mm |
| Da max | 20.4mm |
| Da min | 17.1mm |
| ra max | 0.3mm |
| rb max | 0.3mm |
| Weight | 0.015 kg |
