SKU: GE300ES.EU
GE300ES Spherical Plain Bearing 300x430x165x120mm
GE300ES Spherical Plain Bearing 300x430x165x120mm
Out of stock
Description
Description
|
Spherical Plain Bearing: Consisting of steel raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC) provided with an oil hole and groove Benefits: Cost effective replacement bearing, sliding surfaces are steel against steel Note: The outer raceway may have as part of the manufacturing process a split or crack |
- Brand / Quality:
- Simply Spherical Plain - Economy Quality
- Inside Diameter:
- 300mm
- Outside Diameter:
- 430mm
- Width:
- 165mm
Technical
Technical

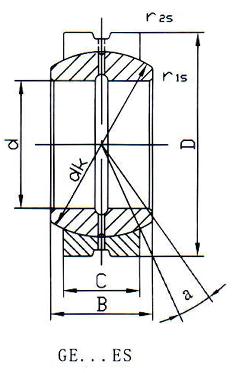

| d | 300mm |
|---|---|
| D | 430mm |
| B | 165mm |
| C | 120mm |
| dk | 375mm |
| rs min | 1.1mm |
| r1s min | 1.1mm |
| Angle α | 7° |
| Dynamic load Co | 3800 kN |
| Static load Cor | 19100 kN |
| Weight | 78.07 kg |
