SKU: GILRSW16-FLURO

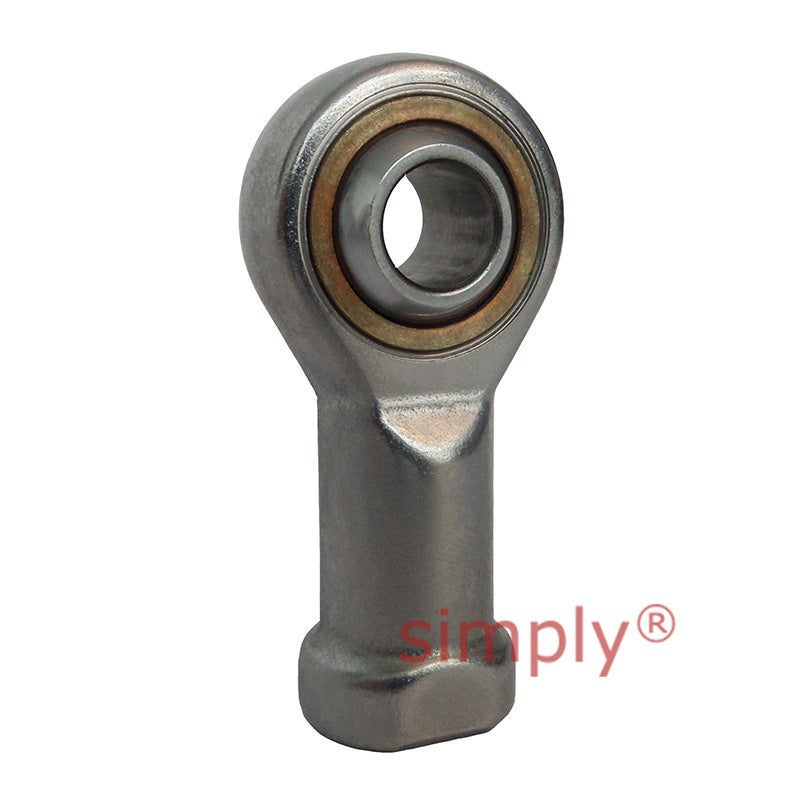

Fluro GILRSW16 Left Hand Zinc Plated Stainless Steel / PTFE Lined Maintenance Free Female Plain Rod End M16 Thread
Fluro GILRSW16 Left Hand Zinc Plated Stainless Steel / PTFE Lined Maintenance Free Female Plain Rod End M16 Thread
Out of stock
Share this product
Description
Description
Fluro GIRSW Series Stainless Steel / PTFE Lined Maintenance Free Female Plain Rod Ends: Rod Ends with female thread made from stainless steel with PTFE liner, maintenance free. For use at high dynamic pressure and tension loads in corrosive environments.
Benefits: Maintenance Free
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M16
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Thread Length:
- 16mm
- Inside Diameter:
- 16mm
- Material:
- Stainless Steel / PTFE Lined
Technical
Technical

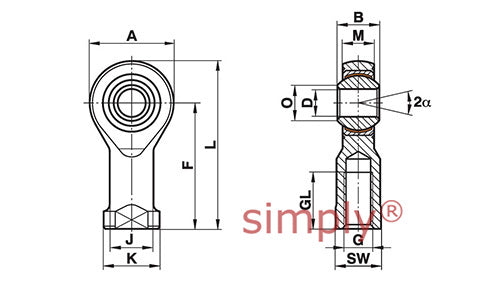

| Bore Size D | 16mm |
|---|---|
| B | 21mm |
| M | 15mm |
| A | 42mm |
| F | 64mm |
| L | 85mm |
| K | 27mm |
| J | 22mm |
| O | 19.3mm |
| SW | 22mm |
| Thread Size G | M16 |
| GL | 28mm |
| Static Load Co | 60.5kN |
| Dynamic Load | 52.5kN |
| Limiting Speed | 230rev/min |
| Approx weight | 0.23kg |
