SKU: GILS16-FLURO

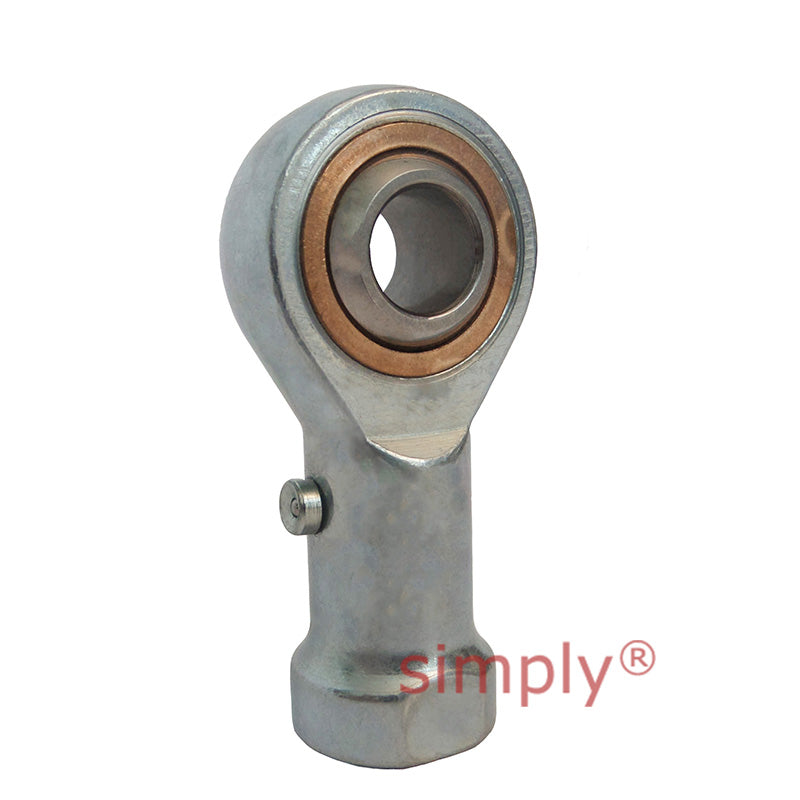

Fluro GILS16 Left Hand Steel / Bronze Female Plain Rod End M16 Thread
Fluro GILS16 Left Hand Steel / Bronze Female Plain Rod End M16 Thread
Out of stock
Share this product
Description
Description
Fluro GIS Series Steel / Bronze Maintenance Required Female Plain Rod Ends: Rod Ends with female thread made from free-cutting or heat-treated steel, zinc plated and fitted with a grease nipple. Especially suited for high speed applications.
Benefits: Grease nipple for easy re-greasing
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M16
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Thread Length:
- 16mm
- Inside Diameter:
- 16mm
- Material:
- Steel / Bronze
Technical
Technical
| Bore Size D | 16mm |
|---|---|
| B | 21mm |
| M | 15mm |
| A | 42mm |
| F | 64mm |
| L | 85mm |
| K | 27mm |
| J | 22mm |
| O | 19.3mm |
| SW | 22mm |
| Thread Size G | M16 |
| GL | 28mm |
| Static Load Co | 32kN |
| Dynamic Load | 21.5kN |
| Limiting Speed | 660rev/min |
| Approx weight | 0.23kg |
