SKU: GILS20-FLURO

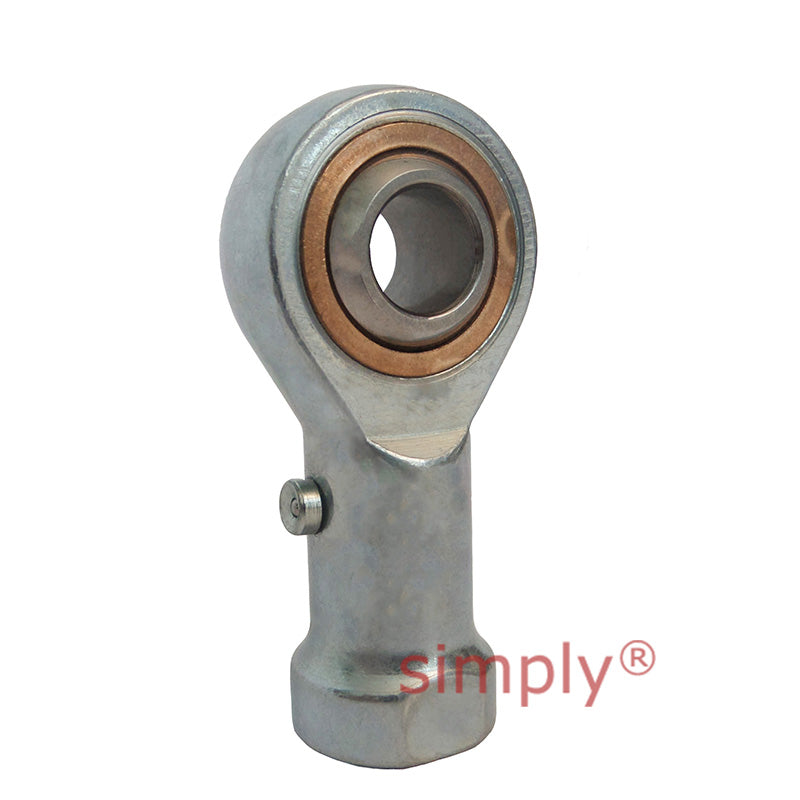

Fluro GILS20 Left Hand Steel / Bronze Female Plain Rod End M20x1.5 Thread
Fluro GILS20 Left Hand Steel / Bronze Female Plain Rod End M20x1.5 Thread
Out of stock
Share this product
Description
Description
Fluro GIS Series Steel / Bronze Maintenance Required Female Plain Rod Ends: Rod Ends with female thread made from free-cutting or heat-treated steel, zinc plated and fitted with a grease nipple. Especially suited for high speed applications.
Benefits: Grease nipple for easy re-greasing
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M20x1.5
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Thread Length:
- 20x1.5mm
- Inside Diameter:
- 20mm
- Material:
- Steel / Bronze

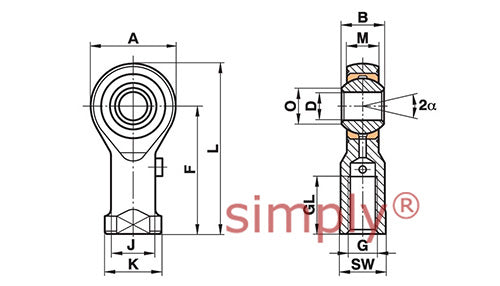

Technical
Technical
| Bore Size D | 20mm |
|---|---|
| B | 25mm |
| M | 18mm |
| A | 50mm |
| F | 77mm |
| L | 102mm |
| K | 34mm |
| J | 27.5mm |
| O | 24.3mm |
| SW | 32mm |
| Thread Size G | M20x1.5 |
| GL | 33mm |
| Static Load Co | 44kN |
| Dynamic Load | 31.5kN |
| Limiting Speed | 540rev/min |
| Approx weight | 0.415kg |
