SKU: GIRSW04-FLURO

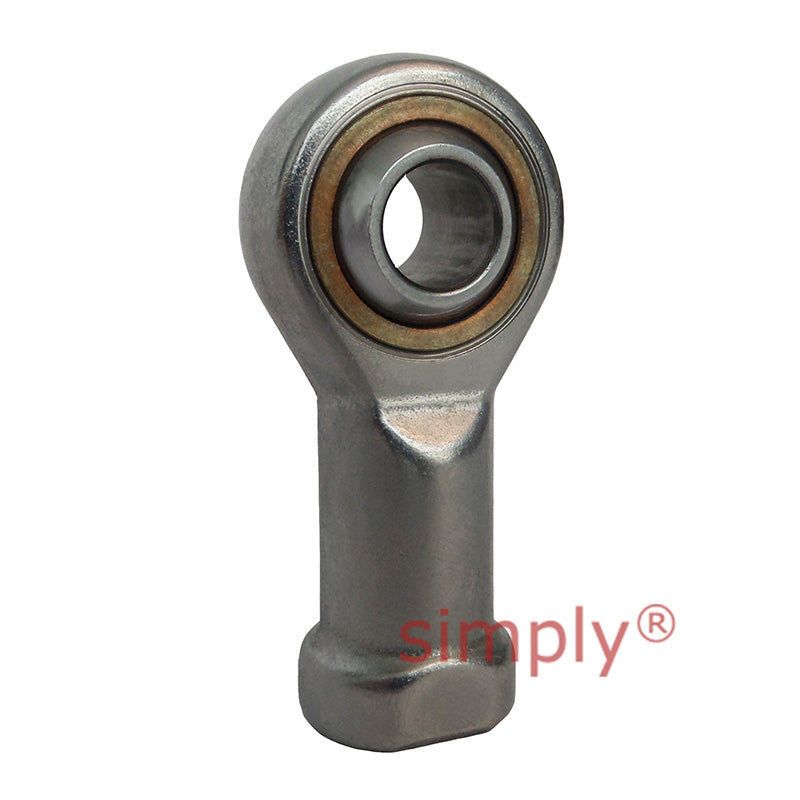

Fluro GIRSW04 Right Hand Zinc Plated Stainless Steel / PTFE Lined Maintenance Free Female Plain Rod End M4 Thread
Fluro GIRSW04 Right Hand Zinc Plated Stainless Steel / PTFE Lined Maintenance Free Female Plain Rod End M4 Thread
Out of stock
Description
Description
Fluro GIRSW Series Stainless Steel / PTFE Lined Maintenance Free Female Plain Rod Ends: Rod Ends with female thread made from stainless steel with PTFE liner, maintenance free. For use at high dynamic pressure and tension loads in corrosive environments.
Benefits: Maintenance Free
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M4
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Thread Length:
- 4mm
- Inside Diameter:
- 4mm
- Material:
- Stainless Steel / PTFE Lined
Technical
Technical
| Bore Size D | 4mm |
|---|---|
| B | 7mm |
| M | 5.25mm |
| A | 14mm |
| F | 24mm |
| L | 31mm |
| K | 9.5mm |
| J | 7.8mm |
| O | 6.5mm |
| SW | 8mm |
| Thread Size G | M4 |
| GL | 12mm |
| Static Load Co | 2.5kN |
| Dynamic Load | 5.1kN |
| Approx weight | 0.011kg |
