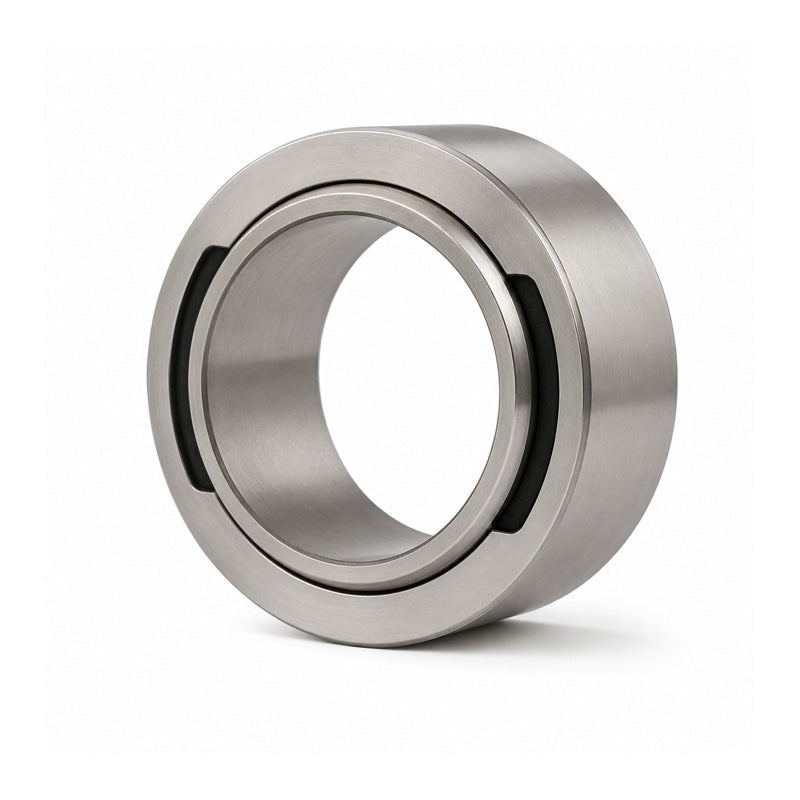

Durbal GLG30-20-500 Maintenance Free Steel / PTFE Lined Spherical Plain Bearing Wider Joint Ball 30x55x32mm

DURBAL Heavy-Duty Spherical-Plain Bearing - Sliding Combination Steel/PTFE: These spherical bearings consist of a hardened and chromium-plated steel joint ball and stainless steel outer ring injected with DURBAL-Glide (Polyamide-PTFE-fibreglass-Compound). DURBAL-Glide (race) made of polyamide-PTFE-glass fibre compound, maintenance-free, encapsulates penetrating foreign bodies. This fact and the greater overlay thickness compared to other sliding materials assure longer durability. A joint ball made of ball bearing steel, hardened, ground, polished, and hard chromium plated ensures reliable corrosion protection. For use with small swivelling movements and at low speeds. Temperature range: -30 deg C to +60 deg C.
Benefits: Suitable for use with impact loads, No clearance: radial clearance 0 – 10 µm, Free from non-ferrous metals.

Wider joint ball?and?larger outside diameter?compared to GLE series, to enable?higher load ratings?and?larger tilt angle

Brand / Quality:

Durbal - High Quality

Inside Diameter:

30mm

Material:

PTFE Lined
