SKU: GLK12-20-500-DURB

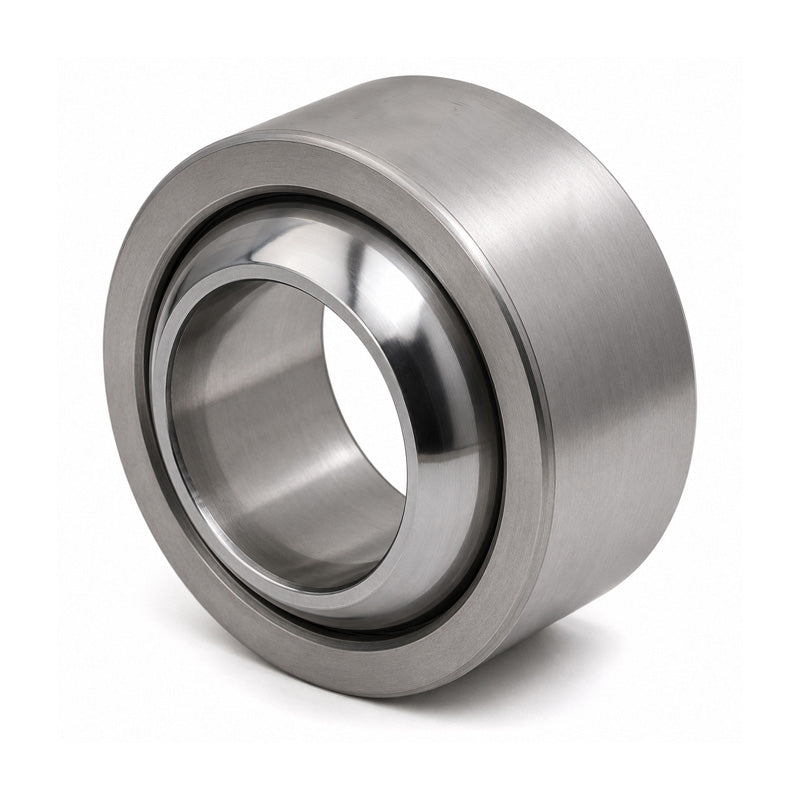

Durbal GLK12-20-500 Maintenance Free Steel / PTFE Lined Spherical Plain Bearing 12x26x16mm
- Regular price
- €47.96 ex VAT
- Sale price
- €47,96
- Regular price
-
Quantity Price Breaks
Durbal GLK12-20-500 Maintenance Free Steel / PTFE Lined Spherical Plain Bearing 12x26x16mm
- Regular price
- €47.96 ex VAT
- Sale price
- €47,96
- Regular price
-
Description
DURBAL Heavy-Duty Spherical-Plain Bearing - Sliding Combination Steel/PTFE: These spherical bearings consist of a hardened and chromium-plated steel joint ball and stainless steel outer ring injected with DURBAL-Glide (Polyamide-PTFE-fibreglass-Compound). DURBAL-Glide (race) made of polyamide-PTFE-glass fibre compound, maintenance-free, encapsulates penetrating foreign bodies. This fact and the greater overlay thickness compared to other sliding materials assure longer durability. A joint ball made of ball bearing steel, hardened, ground, polished, and hard chromium plated ensures reliable corrosion protection. For use with small swivelling movements and at low speeds. Temperature range: -30 deg C to +60 deg C.
Benefits: Suitable for use with impact loads, No clearance: radial clearance 0 – 10 µm, Free from non-ferrous metals.

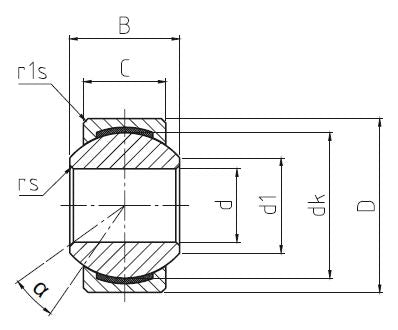

Technical
| d | = | 12mm |
| D | = | 26mm |
| B | = | 16mm |
| C | = | 12mm |
| d1 | = | 15.4mm |
| dk | = | 22.22mm |
| rs | = | 0.4mm |
| r1s | = | 0.5mm |
| tilt angle & | = | alpha |
| = | 13 deg | |
| weight | = | 0.038kg |
| basic load rating dyn C | = | 12.4 kN |
| basic load rating stat Co | = | 36.1 kN |
| radial clearance CN | = | 0-10 & |
| micro | = | m |
