SKU: GW208PPB22-MB

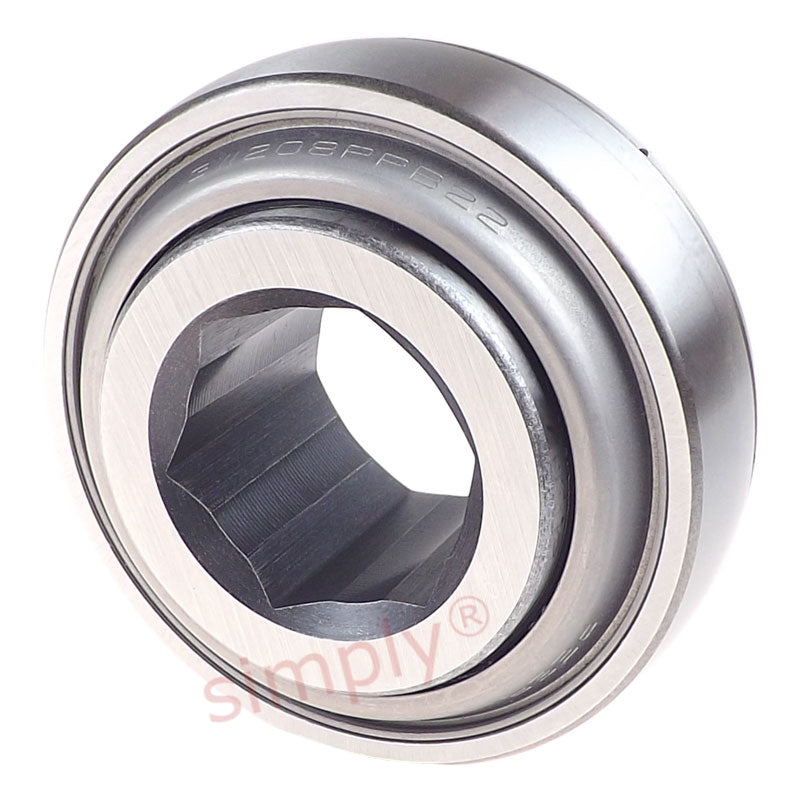

Major Branded GW208PPB22 CNH Hay Tools Hex Bore Relubricatable Bearing 1.251x3.1496x1.438 inch

Name: Major Branded GW208PPB22 CNH Hay Tools Hex Bore Relubricatable Bearing 1.251x3.1496x1.438 inch
Brand: Major Brand
SKU: GW208PPB22-MB
Price: 42.39 EUR
Availability: InStock

€42,39 ex VAT

Sale Sold out

Low stock

Price Break

5+ €32,22

9+ €30,41

19+ €30,05

29+ €29,68

49+ €29,32

74+ €28,96

99+ €27,15

199+ €26,79

249+ €26,43

499+ €26,06

999+ €25,34

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Seal Type: P, TRL
Typical Application & Speed Limit: Augers with Direct Crop Contact - Basic BRG. Size < 205: 800 RPM , Tillage/Baler Idler Rolls - Basic BRG. Size > 205: 500 RPM
Typical Environment: Direct ground and crop contact, moisture exposure
Contamination Exclusion: Severe

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 31.77mm = 1.251 inch
Outside Diameter:: 79.99mm = 3.149 inch
Width:: 36.53mm = 1.437 (1-7/16) inch

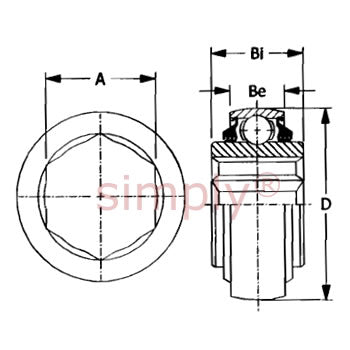

Technical

d	1.251 inch = 31.7754mm (Tolerance +.0000 to minus 0.005)
D	3.1496 inch = 79.99984mm (Tolerance +.0000 to minus 0.0005)
Bi	1.438 inch = 36.5252mm
Be	0.827 inch = 21.0058mm
Be & Bi	(Tolerance +.0000 to minus 0.005)
Seal/Shield Type	P, TRL Seal
Load Ratings Dynamic	7340 lbf
Load Ratings Static	3650 lbf
