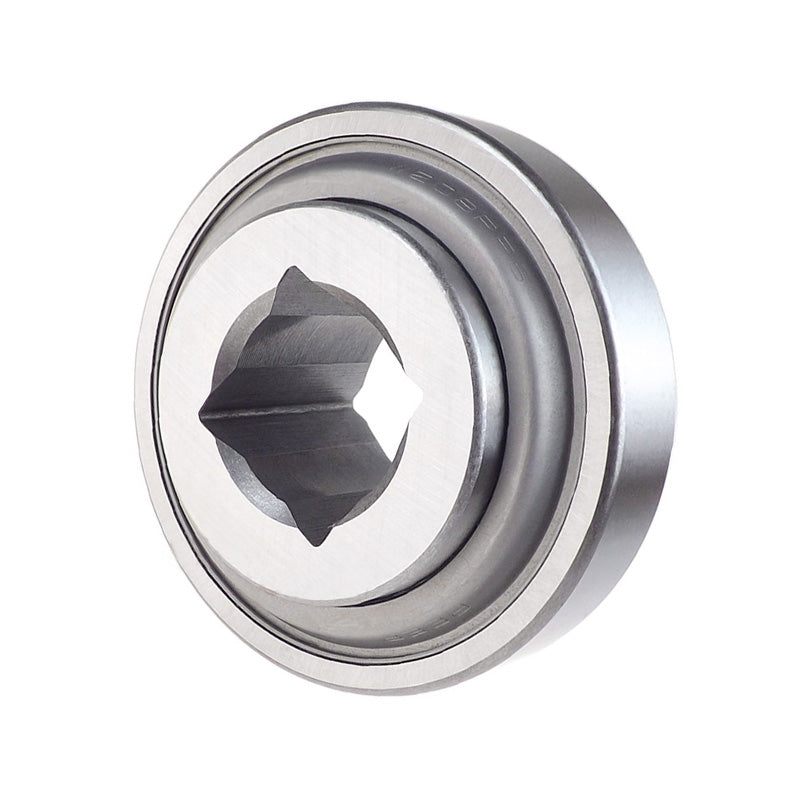

Major Branded GW214PPB4 Gang Disc Harrow Spherical Outer Square Bore Standard Relubricatable Bearing 2.0551x4.9213x1.5625 inch

Gang Disc
Application conditions:

• Utilizes two to three support bearings on a common shaft with several disks spaced with spools
• Constant and unpredictable movement of the gang shaft can generate severe stress on the internal components of the support bearings
• A great working depth places the bearings directly into the flow of soil and crop residue

• Directly interchangeable industry standard units
• Static misalignment capability accommodates imprecise mounting surfaces

• Dynamic misalignment capability eliminates internal bearing damage
• Shock load protection due to high grade ductile iron housing
• Exclusive patented sealing system eliminates the need for daily relubrication

Seal Type: P, TRL
Typical Application & Speed Limit: Augers with Direct Crop Contact - Basic BRG. Size < 205: 800 RPM , Tillage/Baler Idler Rolls - Basic BRG. Size > 205: 500 RPM
Typical Environment: Direct ground and crop contact, moisture exposure
Contamination Exclusion: Severe

Brand / Quality:

PEER - High Quality

Inside Diameter:

52.2mm = 2.055 inch

Outside Diameter:

125mm = 4.921 inch

Width:

39.68mm = 1.562 inch
