SKU: GY1108-KRR-B-AS2/V-INA

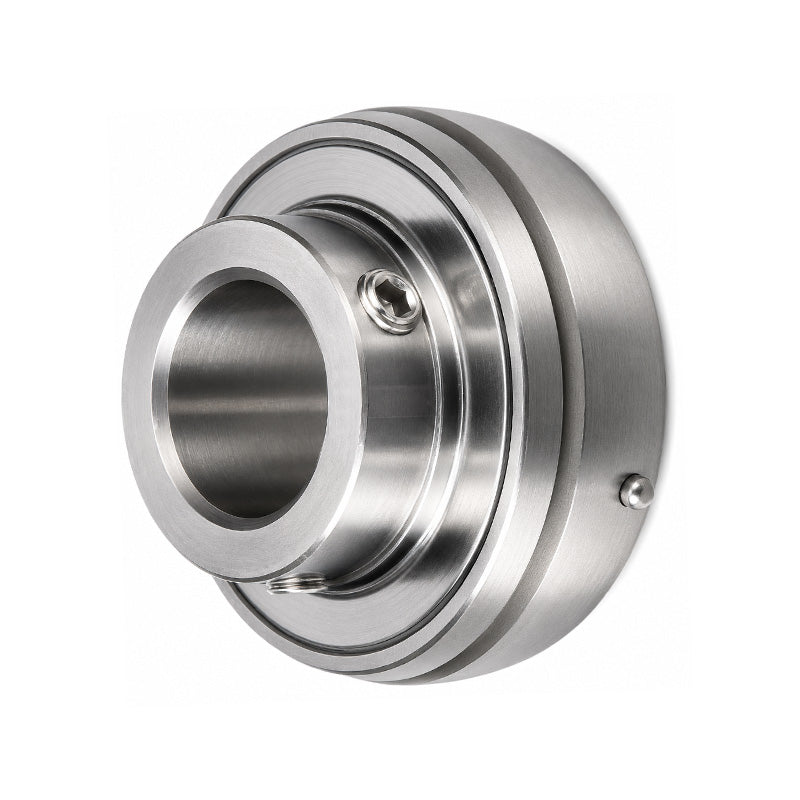

INA GY1108KRRBAS2/V Imperial Spherical Outer Bearing Insert with R Seals and Grub Screws 38.1x80x49.2mm
INA GY1108KRRBAS2/V Imperial Spherical Outer Bearing Insert with R Seals and Grub Screws 38.1x80x49.2mm
Out of stock
Description
Description
|
INA GY..KRR-B Series Inserts: Bearing insert with spherical outer race, R seals and grub screws. In these radial insert ball bearings, the inner ring is located on the shaft by means of two grub screws offset by 120 degrees. This location method is suitable for bearing arrangements with a constant direction of rotation or, under low speed and load, for an alternating direction of rotation. The grub screws are self-retaining and have a fine pitch thread with cup point for secure location of the bearings. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Outside Diameter:
- 80mm
- Width:
- 49.2mm
Technical
Technical
| d | 1-1/2 inch |
|---|---|
| d | 38.1mm |
| Dsp | 3.1496 inch |
| Dsp | 80mm |
| B | 1.9370 inch |
| B | 49.2mm |
| A | 0.315 inch |
| C | 0.827 inch |
| C2 | 0.925 inch |
| Ca | 0.252 inch |
| D1 | 2.689 inch |
| d1 | 2.059 inch |
| S | 0.748 inch |
| W | 5/32 inch |
| Dynamic load Cr | 7300 lbf |
| Dynamic load Cr | 32500 N |
| Static load C0r | 4450 lbf |
| Static load C0r | 19800 N |
| Weight | 1.43 lbs |
