SKU: H249148/H249111CD/H249148XB-TIM

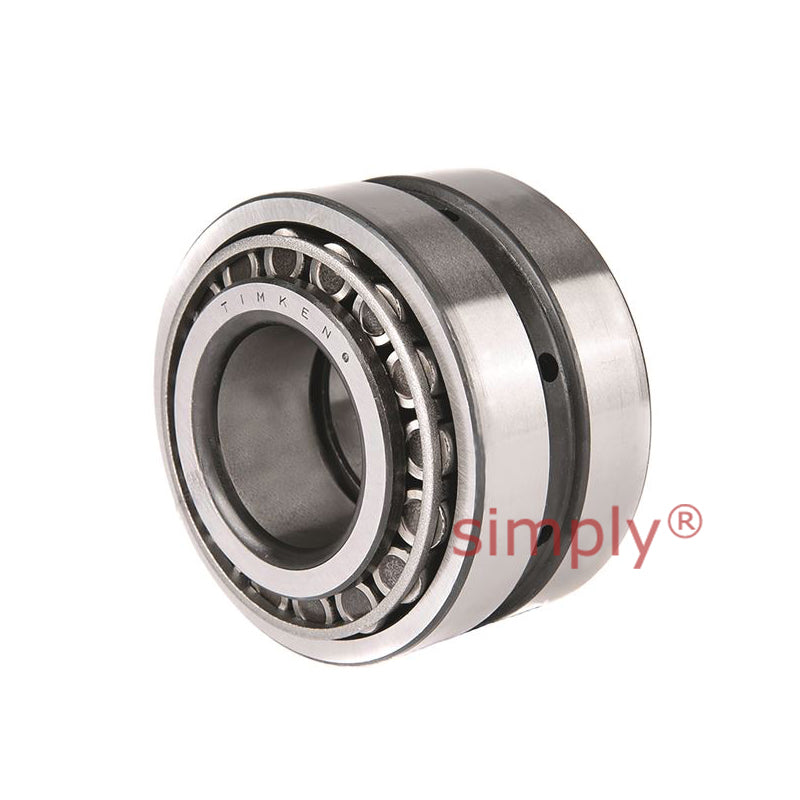

Timken H249148/H249111CD/H249148XB TDO Double Outer Race Taper Roller Bearing 9.5x16x8.5x7.25 inch
Timken H249148/H249111CD/H249148XB TDO Double Outer Race Taper Roller Bearing 9.5x16x8.5x7.25 inch
Out of stock
Description
Description

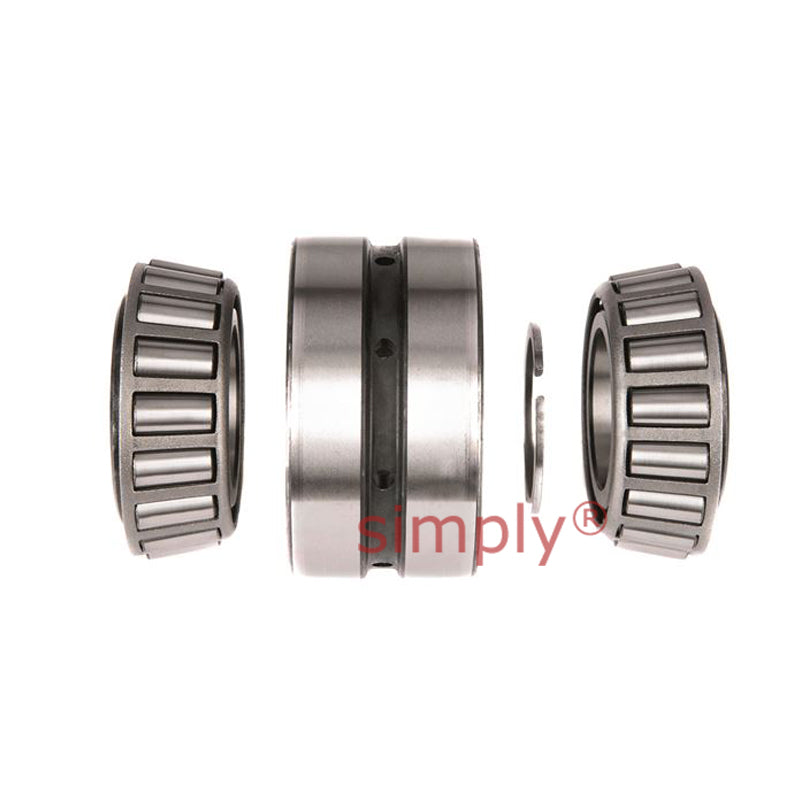

Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 241.30mm = 9.5 inch
- Outside Diameter:
- 406.40mm = 16 inch
- Width:
- 215.90mm = 8.5 inch
Technical
Technical
| d | 241.3mm = 9.5 inch |
|---|---|
| D | 406.4mm = 16 inch |
| T | 215.9mm = 8.5 inch |
| C | 184.15mm = 7.25 inch |
| Dynamic (1) C1 | 2780000N |
| Factors (5) e | 0.33 |
| Factors (5) Y1 | 2.03 |
| Factors (5) Y2 | 3.02 |
| Dynamic (2) C90 | 414000N |
| Dynamic (2) Ca90 | 236000N |
| Dynamic (2) C90(2) | 721000N |
| Factors (5) K | 1.76 |
| Shaft max shaft fillet radius R(3) | 6.4mm = 0.25 inch |
| Shaft backing shoulder diameter db | 273mm = 10.75 inch |
| Housing max shaft fillet radius r(3) | 1.5mm = 0.06 inch |
| Housing backing shoulder diameter Da | 385mm = 15.16 inch |
| Pin Ka | 28.4mm = 1.12 inch |
| Pin Kb | 11.7mm = 0.46 inch |
| G1 | 1710 |
| G2 | 135 |
| Cg | 0.1556 |
