SKU: H816249/H816210-TIM

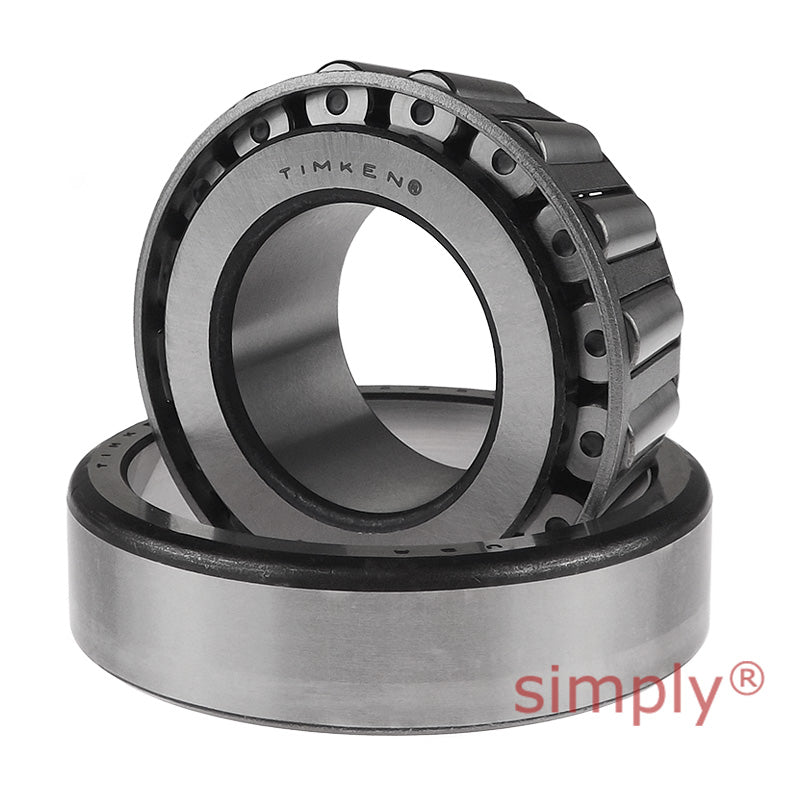

Timken H816249/H816210 TS Single-Row Taper Roller Bearing 3.0625x6.4951x1.9488 inch
Timken H816249/H816210 TS Single-Row Taper Roller Bearing 3.0625x6.4951x1.9488 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 77.79mm = 3.063 (3-1/16) inch
- Outside Diameter:
- 164.98mm = 6.495 inch
- Width:
- 49.5mm = 1.949 inch
Technical
Technical
| d | 77.788mm = 3.0625 inch |
|---|---|
| D | 164.976mm = 6.4951 inch |
| T | 49.5mm = 1.9488 inch |
| Dynamic (1) C1 | 325000N |
| Factors (5) e | 0.51 |
| Factors (5) Y | 1.17 |
| Dynamic (2) C90 | 84400N |
| Dynamic (2) Ca90 | 73800N |
| Factors (5) K | 1.14 |
| Static C0 | 400000N |
| Bearing B | 46.248mm = 1.8208 inch |
| Bearing C | 36.251mm = 1.4272 inch |
| Bearing a(3) | -6.4mm = -0.25 inch |
| Shaft max shaft fillet radius R(4) | 3.5mm = 0.14 inch |
| Shaft backing shoulder diameter da | 92.5mm = 3.64 inch |
| Shaft backing shoulder diameter db | 102mm = 4.02 inch |
| Housing backing shoulder diameter r(4) | 3.3mm = 0.13 inch |
| Housing backing shoulder diameter Da | 154.5mm = 6.08 inch |
| Housing backing shoulder diameter Db | 144mm = 5.67 inch |
| Cage Aa | 4.6mm = 0.18 inch |
| Cage Ab | 5.9mm = 0.23 inch |
| G1 | 127 |
| G2 | 23.2 |
| Cg | 0.0959 |
