SKU: HA3138-EU
HA3138 Budget Imperial Adaptor Sleeve for 6-15/16 inch Shaft
- Regular price
- €542.07 ex VAT
- Sale price
- €542,07
- Regular price
-
Not in stock
Quantity Price Breaks
10
€482.44
19
€455.34
29
€449.92
39
€444.50
49
€439.08
74
€433.66
99
€406.55
199
€401.13
249
€395.71
499
€390.29
999
€379.45
SKU:
HA3138-EU
HA3138 Budget Imperial Adaptor Sleeve for 6-15/16 inch Shaft
- Regular price
- €542.07 ex VAT
- Sale price
- €542,07
- Regular price
-
Description
|
Adaptor Sleeves for imperial shafts: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position |
Technical

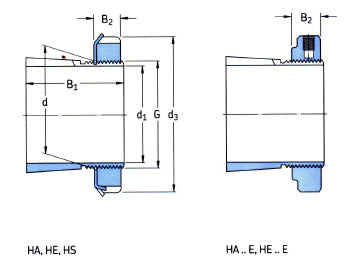

| --- | = | Dimensions |
| d1 | = | 176.213mm (6-15/16) inch |
| d | = | 190mm |
| d3 | = | 240mm |
| B1 | = | 141mm |
| B2 | = | 30.5mm |
| G | = | Thread 190x3mm |
| Weight | = | 8.5 kg |
| --- | = | Assembly Parts |
| Sleeve | = | HA3138 |
| Nut | = | KM38 |
| Washer | = | MB38 |
| Hydraulic nut | = | HMV38E |
| --- | = | Matching Spherical Roller Bearings |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=23138K+taper> | = | 23138K< |
| /a> | = | |
| Bearing No. | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=22238K+taper> | = | 22238K< |
| /a> | = |
