SKU: HC203

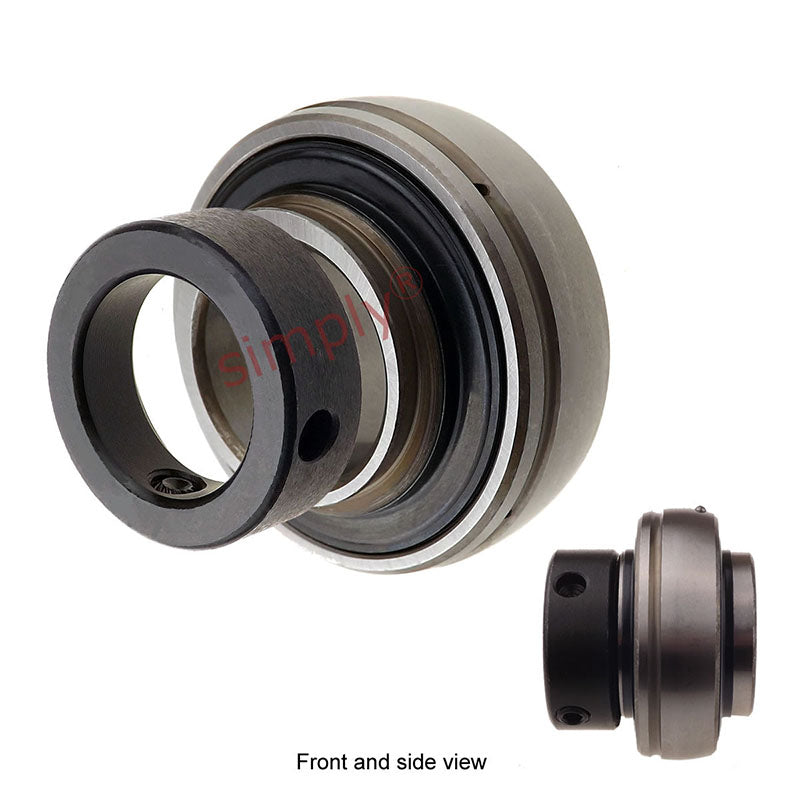

HC203 Eccentric Collar Full Width Insert 17mm Bore 47mm Outside Dia
- Regular price
- €14.87 ex VAT
- Sale price
- €14,87
- Regular price
-
Not in stock
Quantity Price Breaks
3
€13.23
4
€12.49
9
€12.34
19
€12.19
49
€12.04
99
€11.90
499
€11.15
999
€11.00
1999
€10.86
2999
€10.71
4999
€10.41
SKU:
HC203
HC203 Eccentric Collar Full Width Insert 17mm Bore 47mm Outside Dia
- Regular price
- €14.87 ex VAT
- Sale price
- €14,87
- Regular price
-
Description
|
HC or -- YEL or GE.. KRR Series Eccentric Collar Type Insert: Sealed full width bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. |
Technical
| d | = | 17mm |
| D | = | 47mm |
| B1 | = | 43.7mm |
| B | = | 34.2mm |
| C | = | 17mm |
| s | = | 17.1mm |
| ds | = | M6x1 |
| G | = | 4.8mm |
| B5 | = | 13.5mm |
| d3 | = | 33.3mm |
| F | = | 3.7mm |
| Dynamic load | = | 1305 kgf |
| Static load | = | 678 kgf |
| Weight | = | 0.25 kg |
