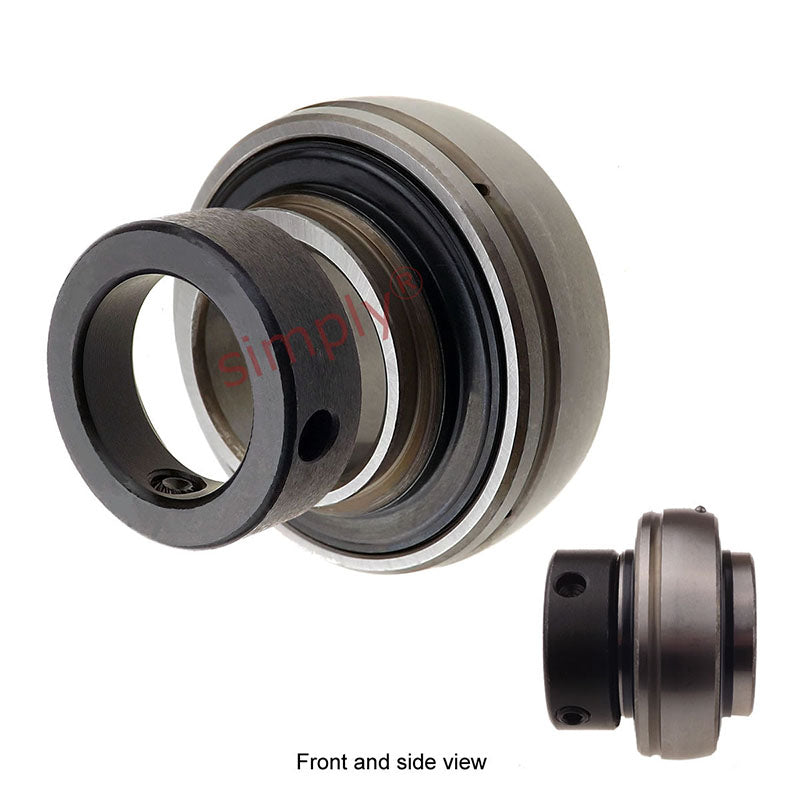

HC209-28 Eccentric Collar Full Width Insert 1-3/4 inch Bore 85mm Outside Dia

SKU: HC209-28

HC209-28 Eccentric Collar Full Width Insert 1-3/4 inch Bore 85mm Outside Dia

€20.06 ex VAT
€20,06
ex VAT
Equivalent to: NA209-28
Not in stock

Quantity Price Breaks

3 €17.85
4 €16.85
9 €16.65
19 €16.45
49 €16.25
99 €16.05
499 €15.05
999 €14.84
1999 €14.64
2999 €14.44
4999 €14.04
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
HC209-28 Eccentric Collar Full Width Insert 1-3/4 inch Bore 85mm Outside Dia
SKU: HC209-28

HC209-28 Eccentric Collar Full Width Insert 1-3/4 inch Bore 85mm Outside Dia

€20.06 ex VAT
€20,06
ex VAT

Description

HC or -- YEL or GE.. KRR Series Eccentric Collar Type Insert: Sealed full width bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing.
Benefits: Cost effective bearing insert, locking collar and grub screw fixing, secure shaft fixing, full width inner race.

Technical

d = 1-3/4 inch
D = 85mm
B1 = 56.3mm
B = 42.8mm
C = 22mm
s = 21.4mm
ds = 15/16 x 24 UNF
G = 6.8mm
B5 = 18.3mm
d3 = 63.5mm
F = 6.4mm
Dynamic load = 3222 kgf
Static load = 2101 kgf
Weight = 0.87 kg
