SKU: HCT311-32

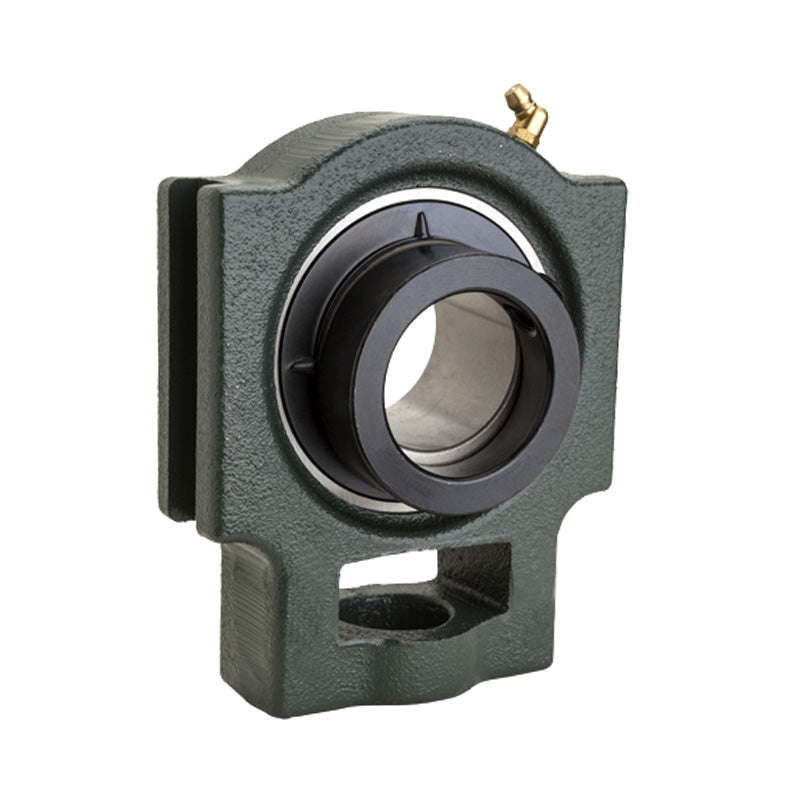

HCT311-32 Imperial Cast Iron Take Up Unit Housing with 2 inch Bore Eccentric Collar Insert
HCT311-32 Imperial Cast Iron Take Up Unit Housing with 2 inch Bore Eccentric Collar Insert
Out of stock
Share this product
Description
Description
HCT300 Series Heavy-Duty Take-Up Housing Units: Heavy-duty bearing unit supplied with a fully sealed bearing insert fitted in the slotted take-up housing and include a grease nipple to facilitate re-lubrication. The bearing insert provided with this housing has an eccentric collar. The inserts can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, eccentric collar
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, eccentric collar
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- HCT
Technical
Technical
| d | 2 inch |
|---|---|
| o | 29mm |
| g | 21mm |
| p | 105mm |
| q | 66mm |
| s | 39mm |
| b | 115mm |
| k | 22mm |
| e | 150mm |
| a | 163mm |
| w | 207mm |
| j | 66mm |
| l | 44mm |
| r | 80mm |
| h | 127mm |
| Bi | 73mm |
| n | 27.8mm |
| Bearing No. | HC311-32 |
| Housing No. | T311 |
| Weight | 6.5 kg |
