SKU: HK1012RS-MB

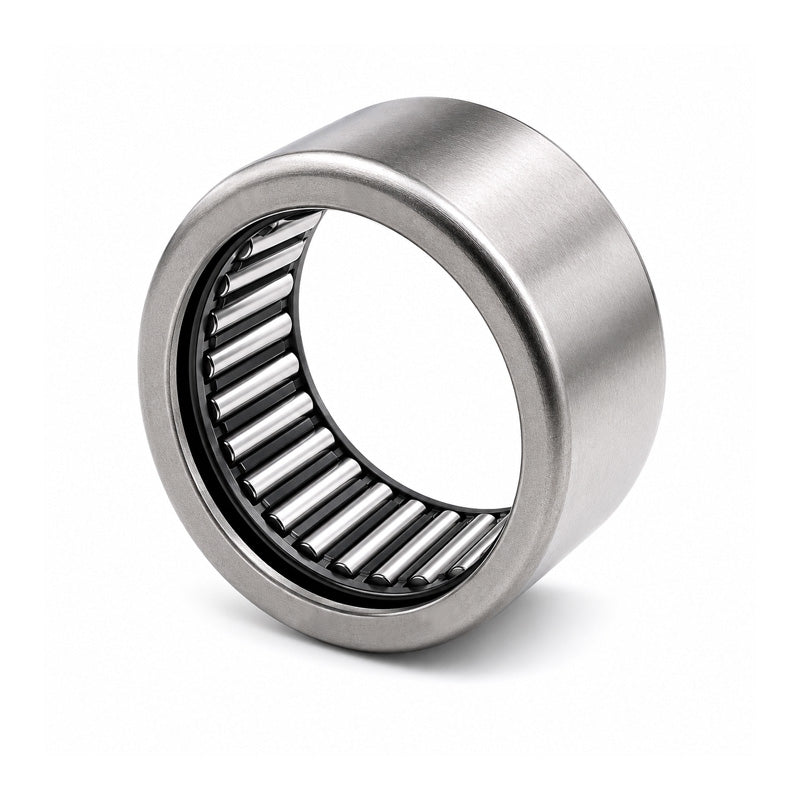

Major Brand HK1012RS Drawn Cup Type Needle Roller Rubber Sealed Bearing with Two Open Ends 10x14x12mm
- Regular price
- €4.38 ex VAT
- Sale price
- €4,38
- Regular price
-
In stock
Quantity Price Breaks
10
€3.90
19
€3.68
29
€3.64
39
€3.59
49
€3.55
74
€3.50
99
€3.29
199
€3.24
249
€3.20
499
€3.15
999
€3.07
SKU:
HK1012RS-MB
Major Brand HK1012RS Drawn Cup Type Needle Roller Rubber Sealed Bearing with Two Open Ends 10x14x12mm
- Regular price
- €4.38 ex VAT
- Sale price
- €4,38
- Regular price
-
Description
|
HK.. RS and HK.. 2RS Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Technical
| Fw | = | 10mm |
| D | = | 14mm |
| C | = | 12mm |
| Dynamic load | = | 4290 N |
| Static load | = | 5300 N |
| Fatigue load limit Pu | = | 570 N |
| Speed in grease | = | 13000 rpm |
| r1r2 min | = | 0.4mm |
| Da max | = | 10.3mm |
| ra max | = | 0.4mm |
| Weight | = | 4.2 g |
