SKU: HK1212-MB

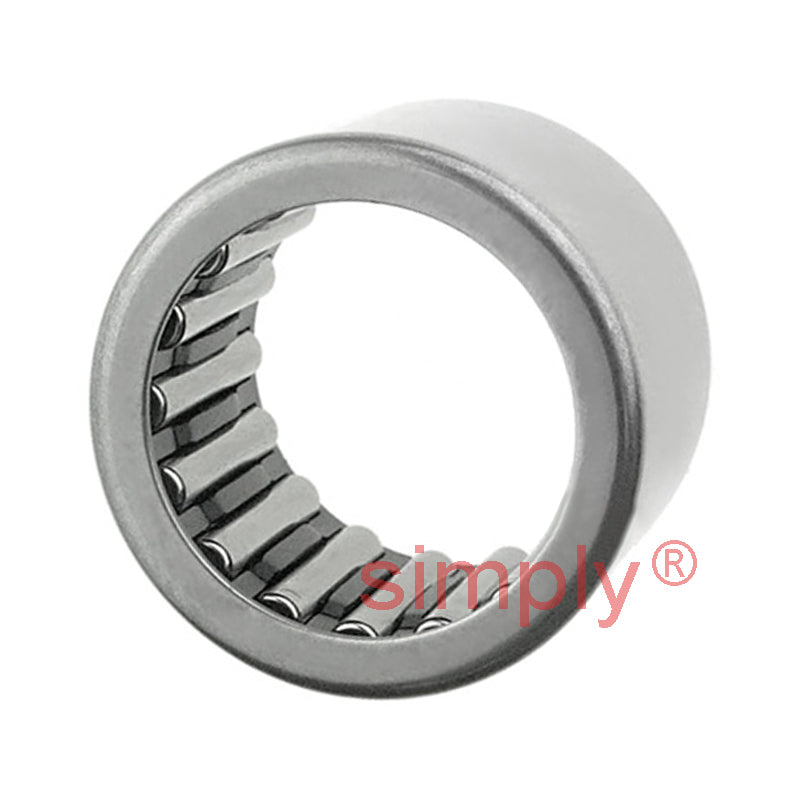

Major Brand HK1212 Drawn Cup Type Needle Roller Bearing with Two Open Ends 12x18x12mm
- Regular price
- €5.25 ex VAT
- Sale price
- €5,25
- Regular price
-
In stock
Quantity Price Breaks
10
€4.67
19
€4.41
29
€4.36
39
€4.31
49
€4.25
74
€4.20
99
€3.94
199
€3.89
249
€3.83
499
€3.78
999
€3.68
SKU:
HK1212-MB
Major Brand HK1212 Drawn Cup Type Needle Roller Bearing with Two Open Ends 12x18x12mm
- Regular price
- €5.25 ex VAT
- Sale price
- €5,25
- Regular price
-
Description
|
HK Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Technical
| Fw | = | 12mm |
| D | = | 18mm |
| C | = | 12mm |
| Dynamic load | = | 6270 N |
| Static load | = | 7350 N |
| Fatigue load limit Pu | = | 850 N |
| Speed in grease | = | 14000 rpm |
| Speed in oil | = | 20000 rpm |
| r1r2 min | = | 0.8mm |
| Da max | = | 13mm |
| ra max | = | 0.8mm |
| Inner ring | = | IR8x12x12.5 |
| Seal | = | G/SD12x18x3 |
| Weight | = | 9 g |
