SKU: HK1214RS-MB

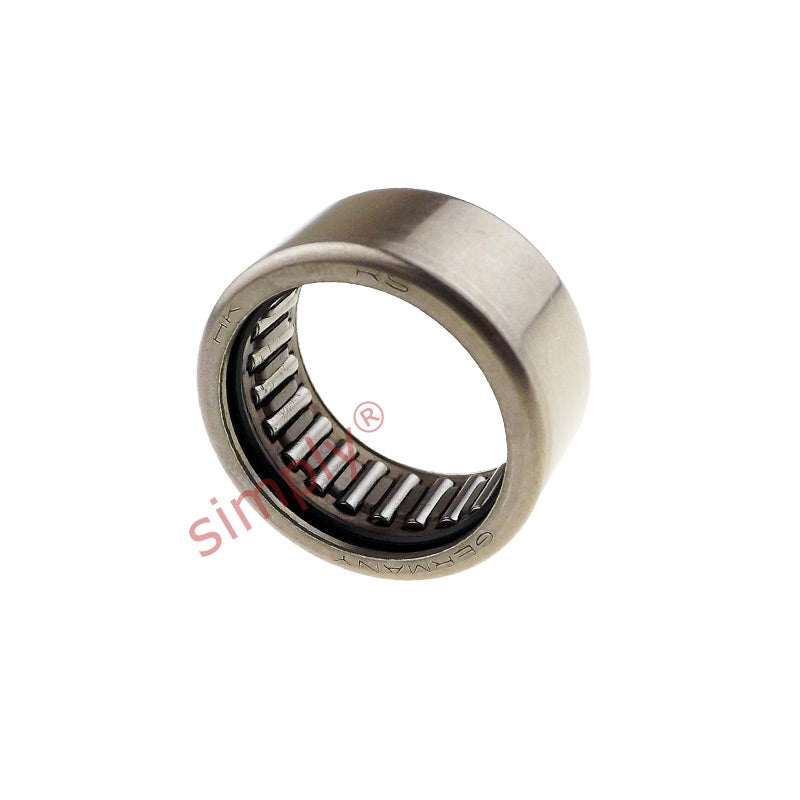

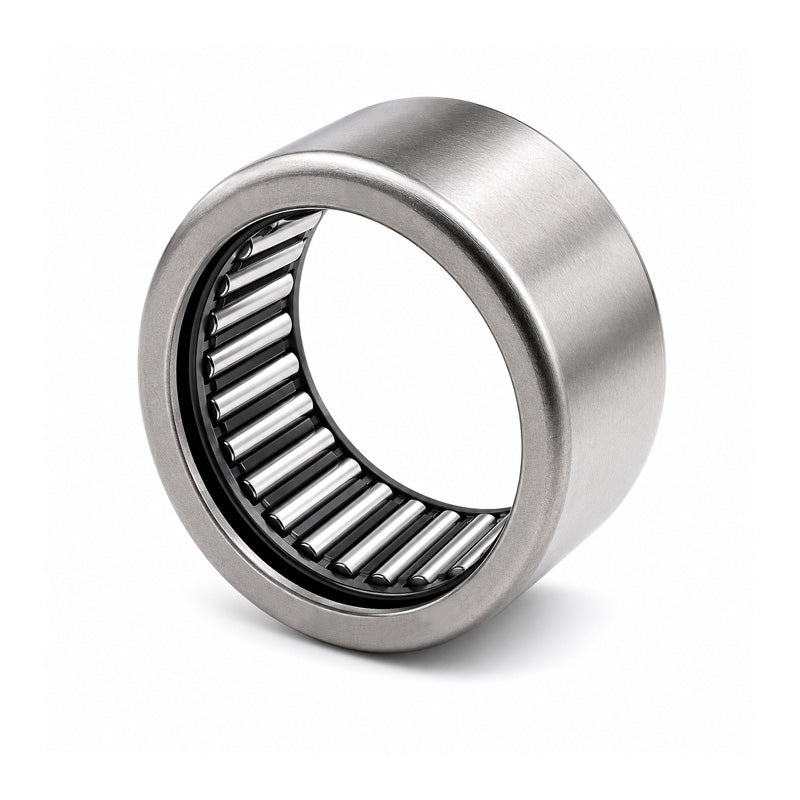

Major Brand HK1214RS Drawn Cup Type Needle Roller Rubber Sealed Bearing with Two Open Ends12x18x14mm
- Regular price
- €5.19 ex VAT
- Sale price
- €5,19
- Regular price
-
In stock
Quantity Price Breaks
10
€4.62
19
€4.36
29
€4.31
39
€4.26
49
€4.20
74
€4.15
99
€3.89
199
€3.84
249
€3.79
499
€3.74
999
€3.63
SKU:
HK1214RS-MB
Major Brand HK1214RS Drawn Cup Type Needle Roller Rubber Sealed Bearing with Two Open Ends12x18x14mm
- Regular price
- €5.19 ex VAT
- Sale price
- €5,19
- Regular price
-
Description
|
HK.. RS and HK.. 2RS Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Technical
| Fw | = | 12mm |
| D | = | 18mm |
| C | = | 14mm |
| Dynamic load | = | 6270 N |
| Static load | = | 7350 N |
| Fatigue load limit Pu | = | 850 N |
| Speed in grease | = | 12000 rpm |
| r1r2 min | = | 0.8mm |
| Da max | = | 13mm |
| ra max | = | 0.8mm |
| Inner ring | = | LR/IR8x12x12.5 |
| Weight | = | 10 g |
