SKU: HK1414L/3AS-NTN

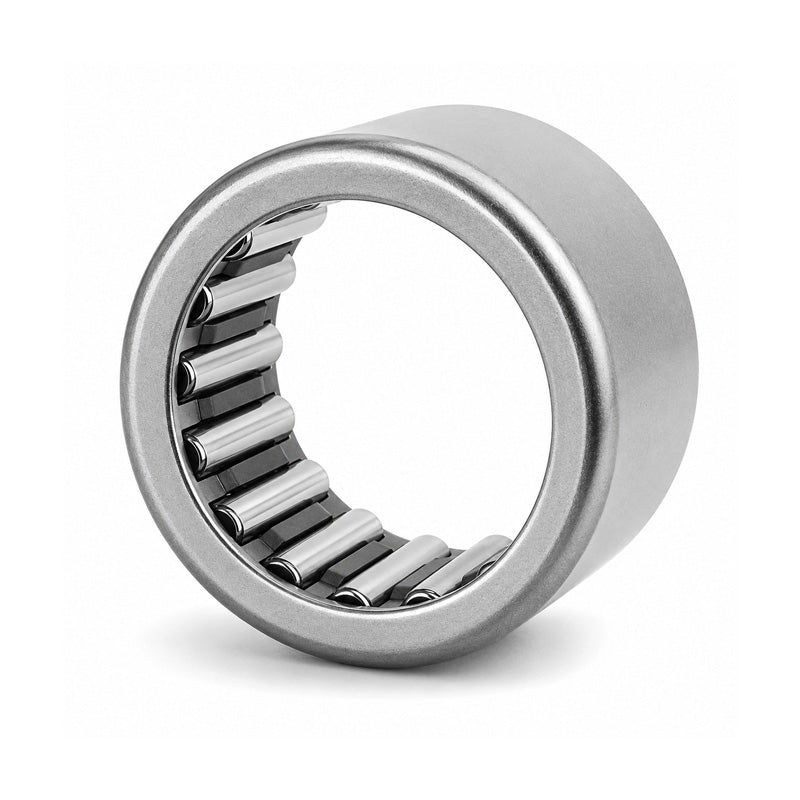

NTN HK1414L/3AS Drawn Cup Needle Roller Bearing with Open End 14x20x14mm
NTN HK1414L/3AS Drawn Cup Needle Roller Bearing with Open End 14x20x14mm
Regular price
€6,86
ex VAT
Regular price
Sale price
€6,86
ex VAT
In stock
Price Break
3+
€5,22
4+
€4,92
9+
€4,86
19+
€4,81
49+
€4,75
99+
€4,69
499+
€4,40
999+
€4,34
1999+
€4,28
2999+
€4,22
4999+
€4,10
Quantity
Couldn't load pickup availability
Share this product
Description
Description
HK Type Drawn Cup Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 14mm
- Outside Diameter:
- 20mm
- Width:
- 14mm
Technical
Technical
| Fw - Inside diameter | 14mm |
|---|---|
| D - Outside diameter | 20mm |
| C1 - Width of Drawn cup L | 14mm |
| C3 - Max drawn cup closed end thickness LL | 2.7mm |
| Lubrication hole on outer ring? | No |
| Inner ring reference | IR10X14X16 |
| Cr - Dynamic load rating | 7.2 kN |
| C0r - Static load rating | 8.5 kN |
| N - Grease lubrication limit speed | 10000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +100 Deg C |
