SKU: HK1516D-NTN
NTN HK1516D Drawn Cup Needle Roller Bearing with Open End 15x21x16mm
NTN HK1516D Drawn Cup Needle Roller Bearing with Open End 15x21x16mm
Regular price
€5,96
ex VAT
Regular price
Sale price
€5,96
ex VAT
In stock
Price Break
3+
€4,53
4+
€4,28
9+
€4,22
19+
€4,17
49+
€4,12
99+
€4,07
499+
€3,82
999+
€3,77
1999+
€3,72
2999+
€3,66
4999+
€3,56
Quantity
Couldn't load pickup availability
Share this product
Description
Description
HK Type Drawn Cup Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 21mm
- Width:
- 16mm
Technical
Technical

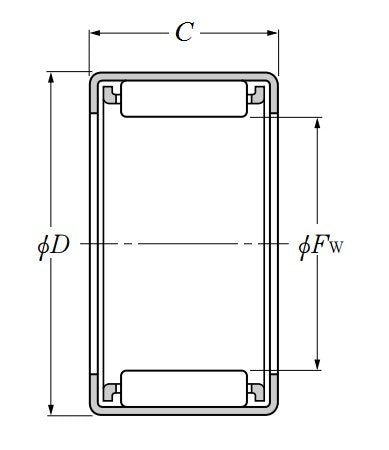

| Fw - Inside diameter | 15mm |
|---|---|
| D - Outside diameter | 21mm |
| C - Width of bearing, drawn cup or outer ring | 16mm |
| Lubrication hole on outer ring? | Yes |
| k - Lubrication hole diameter | 2.5mm |
| Inner ring reference | IR12X15X16.5 |
| Cr - Dynamic load rating | 10.7 kN |
| C0r - Static load rating | 14.4 kN |
| N - Grease lubrication limit speed | 11000 tr/min |
| N - Oil lubrication limit speed | 16000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
