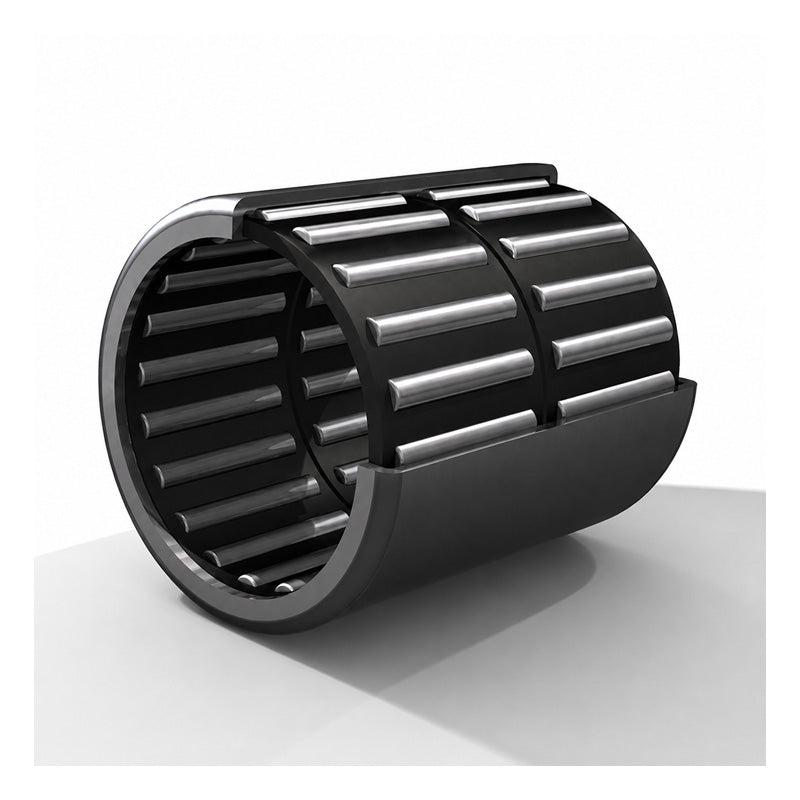

• NTN HK1522ZWD Drawn Cup Double Row Needle Roller Bearing with Open End 15x21x22mm
1 1

SKU: HK1522ZWD-NTN

NTN HK1522ZWD Drawn Cup Double Row Needle Roller Bearing with Open End 15x21x22mm

NTN HK1522ZWD Drawn Cup Double Row Needle Roller Bearing with Open End 15x21x22mm
€6,71 ex VAT
€6,71 ex VAT
Sale Sold out

In stock

Price Break
3+ €5,10
4+ €4,81
9+ €4,76
19+ €4,70
49+ €4,64
99+ €4,58
499+ €4,30
999+ €4,24
1999+ €4,18
2999+ €4,13
4999+ €4,01

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
P42V807W0N
Brand / Quality:
NTN - High Quality
Inside Diameter:
15mm
Outside Diameter:
21mm
Width:
22mm
Technical
Fw - Inside diameter 15mm
D - Outside diameter 21mm
C - Width of bearing, drawn cup or outer ring 22mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 2.5mm
Inner ring reference IR12X15X22.5
Cr - Dynamic load rating 12.9 kN
C0r - Static load rating 18.2 kN
N - Grease lubrication limit speed 11000 tr/min
N - Oil lubrication limit speed 16000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
