SKU: HK1616.2RS-MB

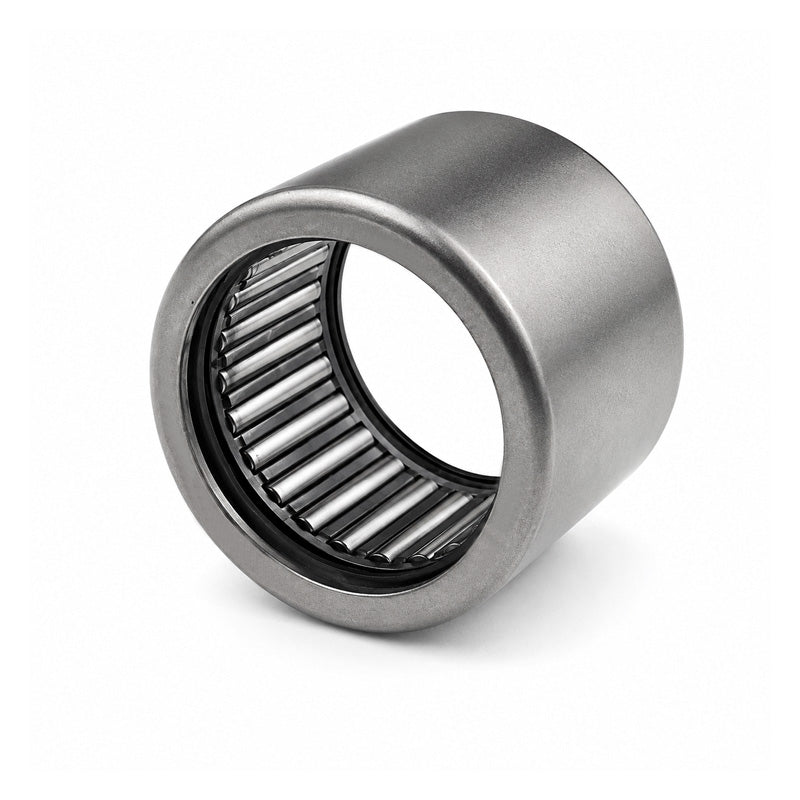

Major Brand HK16162RS Drawn Cup Type Needle Roller Rubber Sealed Bearing with Two Open Ends 16x22x16mm
- Regular price
- €8.98 ex VAT
- Sale price
- €8,98
- Regular price
-
ex VAT
In stock
Quantity Price Breaks
10
€7.99
19
€7.54
29
€7.45
39
€7.36
49
€7.27
74
€7.18
99
€6.74
199
€6.65
249
€6.56
499
€6.47
999
€6.29
Description
|
HK.. RS and HK.. 2RS Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Technical
| Fw | = | 16mm |
| D | = | 22mm |
| C | = | 16mm |
| Dynamic load | = | 7370 N |
| Static load | = | 9800 N |
| Fatigue load limit Pu | = | 1120 N |
| Speed in grease | = | 10000 rpm |
| r1r2 min | = | 0.8mm |
| Da max | = | 17mm |
| ra max | = | 0.8mm |
| Inner ring | = | IR12x16x20 |
| Weight | = | 14 g |
