SKU: HK1622ZW-INA
INA HK1622-ZW Drawn Cup Open End Needle Roller Bearing 16x22x22mm
INA HK1622-ZW Drawn Cup Open End Needle Roller Bearing 16x22x22mm
Regular price
€8,48
ex VAT
Regular price
Sale price
€8,48
ex VAT
In stock
Price Break
10+
€6,44
19+
€6,08
29+
€6,01
39+
€5,94
49+
€5,86
74+
€5,79
99+
€5,43
199+
€5,36
249+
€5,29
499+
€5,21
999+
€5,07
Quantity
Couldn't load pickup availability
Description
Description
Double Row Drawn Cup Needle Roller Bearings: These needle roller bearings are open at both ends and are supplied with needle roller and cage assemblies. The ZW suffix indicates this bearing has a double row design and a lubrication hole in the outer cup.
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 22mm
- Width:
- 22mm

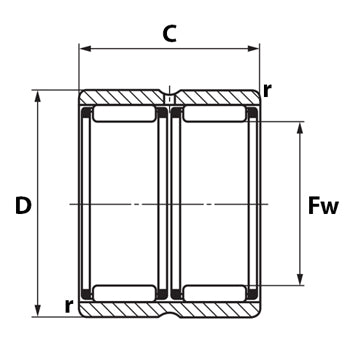

Technical
Technical
| Fw | 16mm |
|---|---|
| D | 22mm |
| C | 22mm (Tolerance: 0/-0.3) |
| r min | 0.8mm |
| Mass | 0.022 kg |
| Basic dynamic load, radial Cr | 13100 N |
| Basic static load, radial Cor | 2360 N |
| Fatigue limit load, radial Cur | 2360 N |
| Limiting speed nG | 15600 rpm |
| Reference speed nΘr | 11700 rpm |
| Suitable inner ring | IR12X16X22-XL |
| Suitable sealing ring | SD16X22X3 |
| Suitable sealing ring | G16X22X3 |
