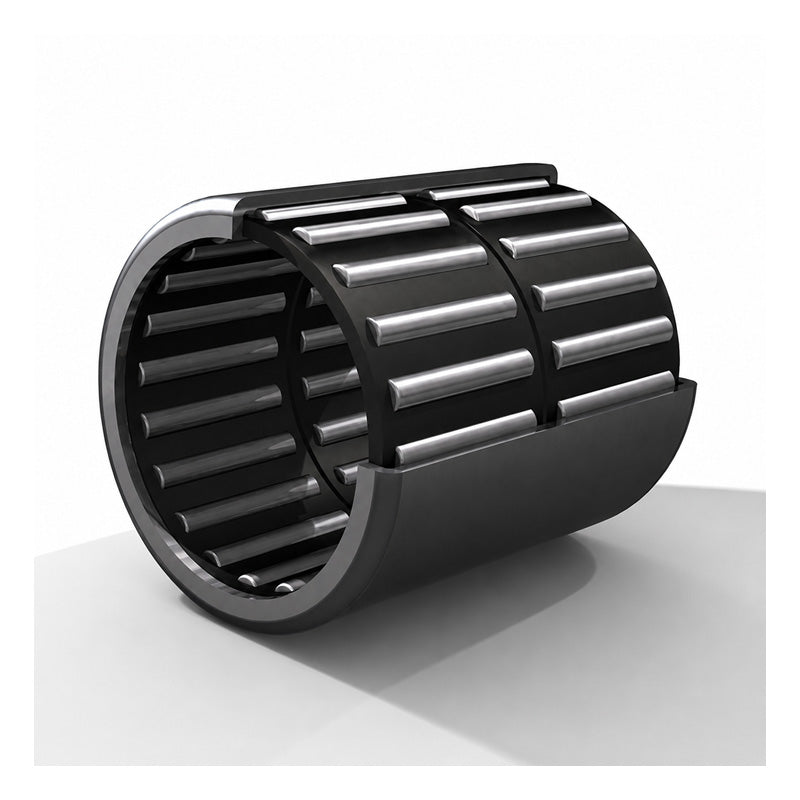

• NTN HK1622ZWD Drawn Cup Double Row Needle Roller Bearing with Open End 16x22x22mm
1 1

SKU: HK1622ZWD-NTN

NTN HK1622ZWD Drawn Cup Double Row Needle Roller Bearing with Open End 16x22x22mm

NTN HK1622ZWD Drawn Cup Double Row Needle Roller Bearing with Open End 16x22x22mm
€7,04 ex VAT
€7,04 ex VAT
Sale Sold out

In stock

Price Break
3+ €5,35
4+ €5,05
9+ €4,99
19+ €4,93
49+ €4,87
99+ €4,81
499+ €4,51
999+ €4,45
1999+ €4,39
2999+ €4,33
4999+ €4,21

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
P42V807W0N
Brand / Quality:
NTN - High Quality
Inside Diameter:
16mm
Outside Diameter:
22mm
Width:
22mm

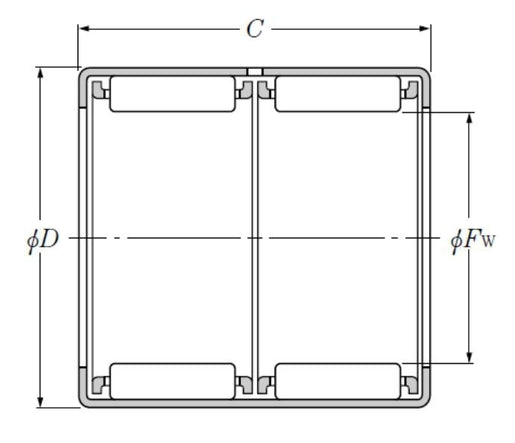

Technical
Fw - Inside diameter 16mm
D - Outside diameter 22mm
C - Width of bearing, drawn cup or outer ring 22mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 2.5mm
Cr - Dynamic load rating 13.3 kN
C0r - Static load rating 19.4 kN
N - Grease lubrication limit speed 10000 tr/min
N - Oil lubrication limit speed 15000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
