SKU: HK2020LL/2AS-NTN

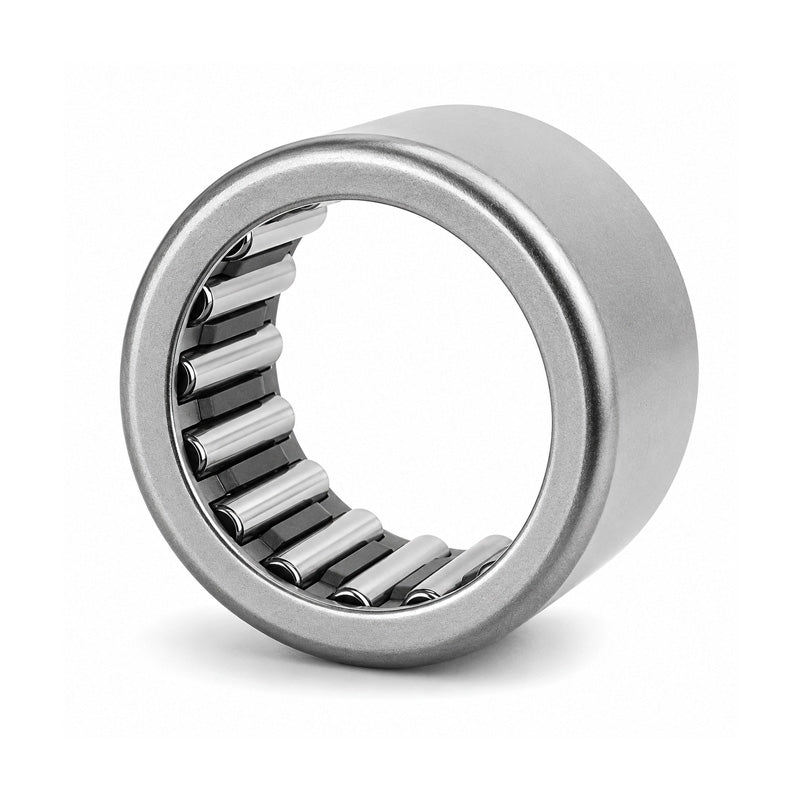

NTN HK2020LL/2AS Drawn Cup Needle Roller Bearing with Open End 20x26x20mm
NTN HK2020LL/2AS Drawn Cup Needle Roller Bearing with Open End 20x26x20mm
Regular price
€8,20
ex VAT
Regular price
Sale price
€8,20
ex VAT
In stock
Price Break
3+
€6,23
4+
€5,88
9+
€5,81
19+
€5,74
49+
€5,67
99+
€5,60
499+
€5,25
999+
€5,18
1999+
€5,11
2999+
€5,04
4999+
€4,90
Quantity
Couldn't load pickup availability
Share this product
Description
Description
HK Type Drawn Cup Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 26mm
- Width:
- 20mm
Technical
Technical
| Fw - Inside diameter | 20mm |
|---|---|
| D - Outside diameter | 26mm |
| C2 - Width of drawn cup LL | 20mm |
| C3 - Max drawn cup closed end thickness LL | 2.7mm |
| Lubrication hole on outer ring? | No |
| Inner ring reference | IR17X20X20.5 |
| Cr - Dynamic load rating | 13 kN |
| C0r - Static load rating | 20.1 kN |
| N - Grease lubrication limit speed | 8000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +100 Deg C |
