SKU: HK2218RS-MB

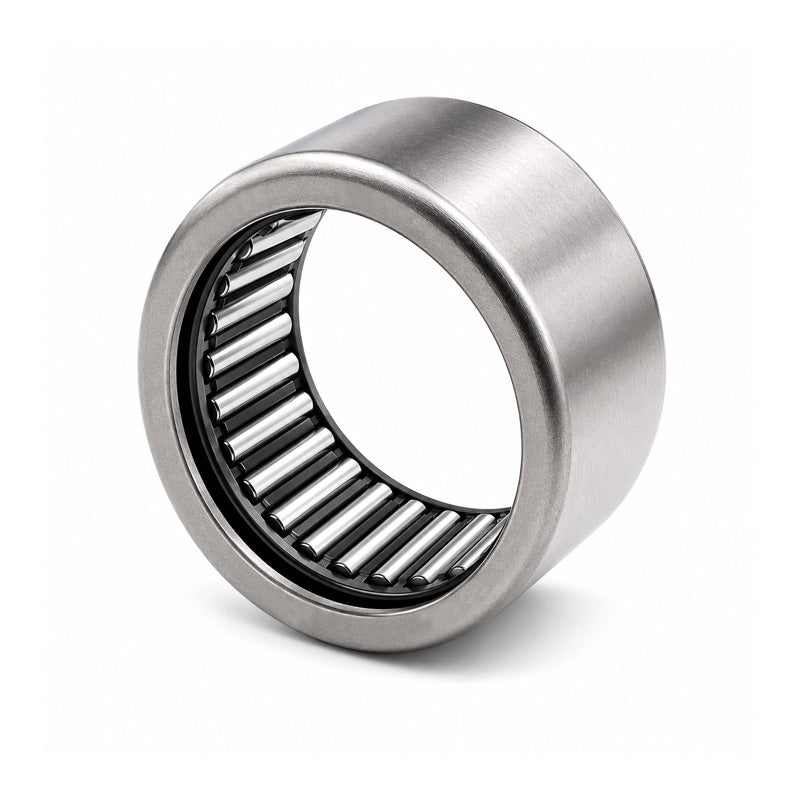

Major Brand HK2218RS Drawn Cup Type Needle Roller Rubber Sealed Bearing with Two Open Ends 22x28x18mm
- Regular price
- €10.09 ex VAT
- Sale price
- €10,09
- Regular price
-
In stock
Quantity Price Breaks
10
€8.98
19
€8.48
29
€8.37
39
€8.27
49
€8.17
74
€8.07
99
€7.57
199
€7.47
249
€7.37
499
€7.26
999
€7.06
SKU:
HK2218RS-MB
Major Brand HK2218RS Drawn Cup Type Needle Roller Rubber Sealed Bearing with Two Open Ends 22x28x18mm
- Regular price
- €10.09 ex VAT
- Sale price
- €10,09
- Regular price
-
Description
|
HK.. RS and HK.. 2RS Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Technical
| Fw | = | 22mm |
| D | = | 28mm |
| C | = | 18mm |
| Dynamic load | = | 13000 N |
| Static load | = | 22400 N |
| Fatigue load limit Pu | = | 2600 N |
| Speed in grease | = | 8000 rpm |
| r1r2 min | = | 0.8mm |
| Da max | = | 23mm |
| ra max | = | 0.8mm |
| Inner ring | = | IR17x22x23 |
| Weight | = | 24 g |
