SKU: HK2516.2RS-MB

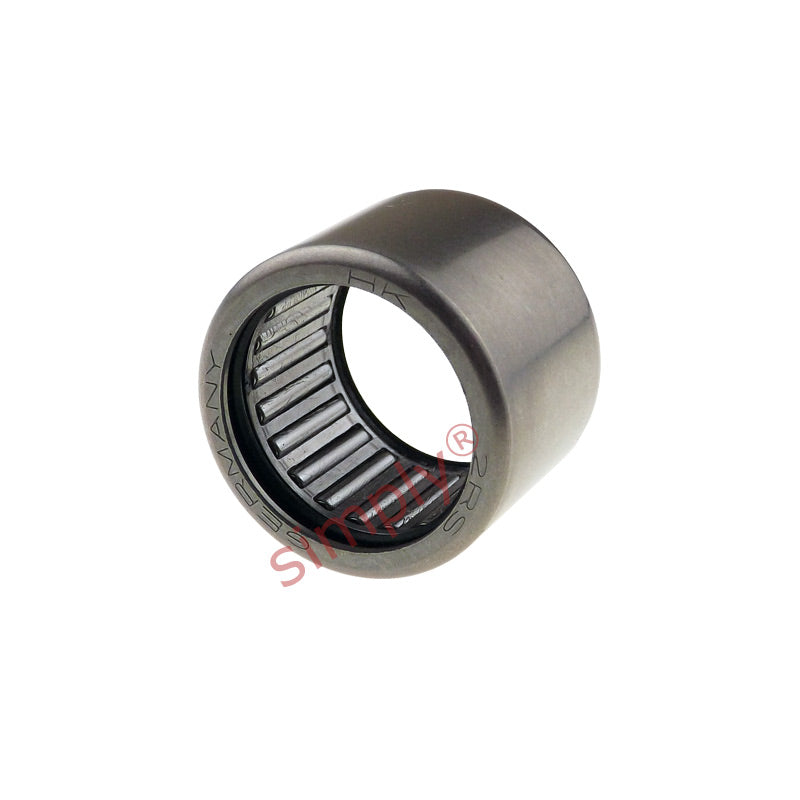

Major Brand HK25162RS Drawn Cup Type Needle Roller Rubber Sealed Bearing with Two Open Ends 25x32x16mm
- Regular price
- €10.83 ex VAT
- Sale price
- €10,83
- Regular price
-
In stock
Quantity Price Breaks
10
€9.64
19
€9.10
29
€8.99
39
€8.88
49
€8.77
74
€8.66
99
€8.12
199
€8.01
249
€7.91
499
€7.80
999
€7.58
SKU:
HK2516.2RS-MB
Major Brand HK25162RS Drawn Cup Type Needle Roller Rubber Sealed Bearing with Two Open Ends 25x32x16mm
- Regular price
- €10.83 ex VAT
- Sale price
- €10,83
- Regular price
-
Description
|
HK.. RS and HK.. 2RS Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Technical
| Fw | = | 25mm |
| D | = | 32mm |
| C | = | 16mm |
| Dynamic load | = | 10500 N |
| Static load | = | 15300 N |
| Fatigue load limit Pu | = | 1760 N |
| Speed in grease | = | 7000 rpm |
| r1r2 min | = | 0.8mm |
| Da max | = | 27mm |
| ra max | = | 0.8mm |
| Inner ring | = | LR20x25x16.5 |
| Weight | = | 27 g |
