SKU: HK2518RS-MB

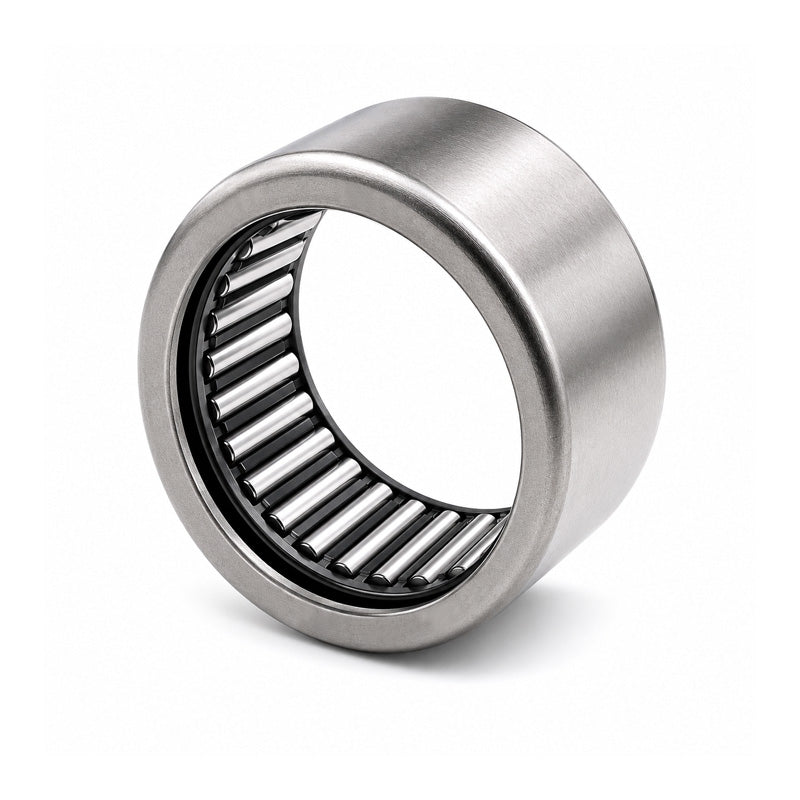

Major Brand HK2518RS Drawn Cup Type Needle Roller Rubber Sealed Bearing with Two Open Ends 25x32x18mm
- Regular price
- €10.53 ex VAT
- Sale price
- €10,53
- Regular price
-
In stock
Quantity Price Breaks
10
€9.37
19
€8.85
29
€8.74
39
€8.63
49
€8.53
74
€8.42
99
€7.90
199
€7.79
249
€7.69
499
€7.58
999
€7.37
SKU:
HK2518RS-MB
Major Brand HK2518RS Drawn Cup Type Needle Roller Rubber Sealed Bearing with Two Open Ends 25x32x18mm
- Regular price
- €10.53 ex VAT
- Sale price
- €10,53
- Regular price
-
Description
|
HK.. RS and HK.. 2RS Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Technical
| Fw | = | 25mm |
| D | = | 32mm |
| C | = | 18mm |
| Dynamic load | = | 15100 N |
| Static load | = | 24000 N |
| Fatigue load limit Pu | = | 2850 N |
| Speed in grease | = | 7000 rpm |
| r1r2 min | = | 0.8mm |
| Da max | = | 27mm |
| ra max | = | 0.8mm |
| Inner ring | = | LR/IR20x25x20.5 |
| Weight | = | 29 g |
