SKU: HK2520D-NTN

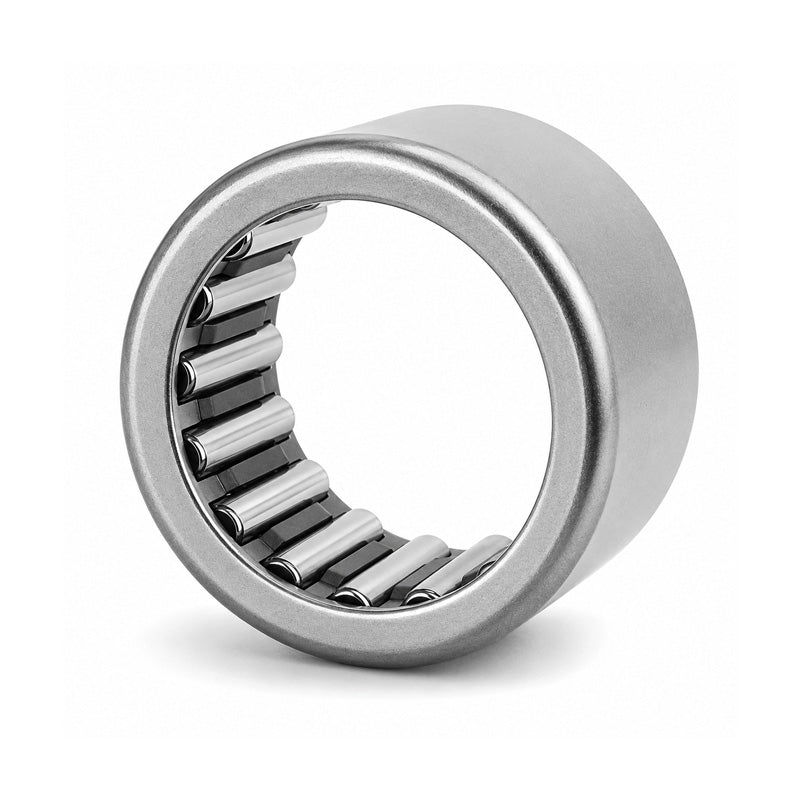

NTN HK2520D Drawn Cup Needle Roller Bearing with Open End 25x32x20mm
NTN HK2520D Drawn Cup Needle Roller Bearing with Open End 25x32x20mm
Regular price
€7,06
ex VAT
Regular price
Sale price
€7,06
ex VAT
In stock
Price Break
3+
€5,37
4+
€5,07
9+
€5,00
19+
€4,94
49+
€4,88
99+
€4,82
499+
€4,52
999+
€4,46
1999+
€4,40
2999+
€4,34
4999+
€4,22
Quantity
Couldn't load pickup availability
Share this product
Description
Description
HK Type Drawn Cup Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 32mm
- Width:
- 20mm
Technical
Technical
| Fw - Inside diameter | 25mm |
|---|---|
| D - Outside diameter | 32mm |
| C - Width of bearing, drawn cup or outer ring | 20mm |
| Lubrication hole on outer ring? | Yes |
| k - Lubrication hole diameter | 2.5mm |
| Inner ring reference | IR20X25X20.5 |
| Cr - Dynamic load rating | 20.3 kN |
| C0r - Static load rating | 33 kN |
| N - Grease lubrication limit speed | 6500 tr/min |
| N - Oil lubrication limit speed | 9500 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
