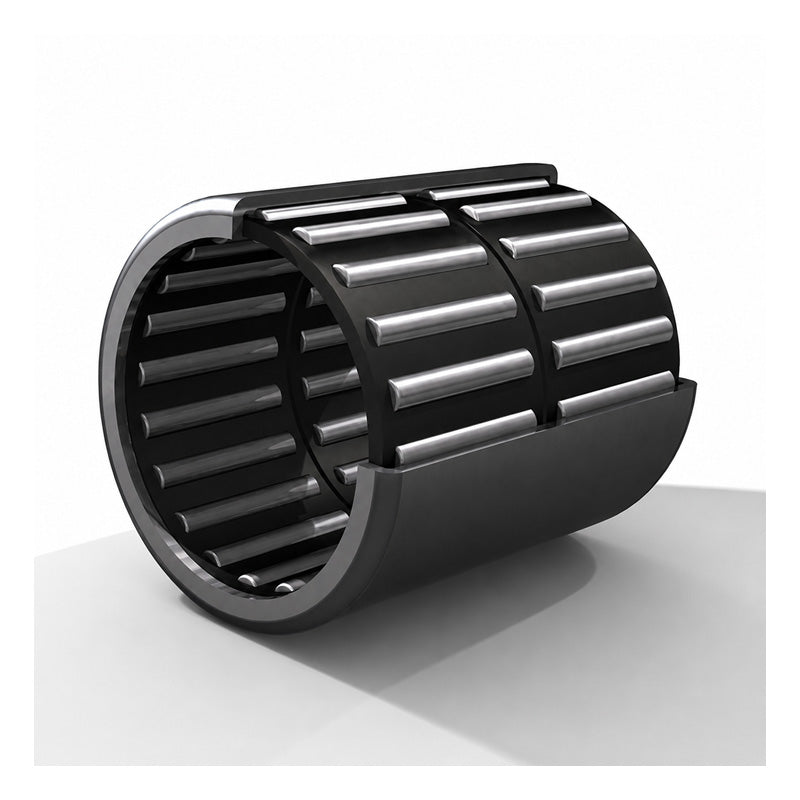

• NTN HK2538ZWD Drawn Cup Double Row Needle Roller Bearing with Open End 25x32x38mm
1 1

SKU: HK2538ZWD-NTN

NTN HK2538ZWD Drawn Cup Double Row Needle Roller Bearing with Open End 25x32x38mm

NTN HK2538ZWD Drawn Cup Double Row Needle Roller Bearing with Open End 25x32x38mm
€9,52 ex VAT
€9,52 ex VAT
Sale Sold out

In stock

Price Break
3+ €7,24
4+ €6,83
9+ €6,75
19+ €6,67
49+ €6,59
99+ €6,50
499+ €6,10
999+ €6,02
1999+ €5,93
2999+ €5,85
4999+ €5,69

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
P42V807W0N
Brand / Quality:
NTN - High Quality
Inside Diameter:
25mm
Outside Diameter:
32mm
Width:
38mm
Technical
Fw - Inside diameter 25mm
D - Outside diameter 32mm
C - Width of bearing, drawn cup or outer ring 38mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 2.5mm
Inner ring reference IR20X25X38.5
Cr - Dynamic load rating 35 kN
C0r - Static load rating 65.5 kN
N - Grease lubrication limit speed 6500 tr/min
N - Oil lubrication limit speed 9500 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
