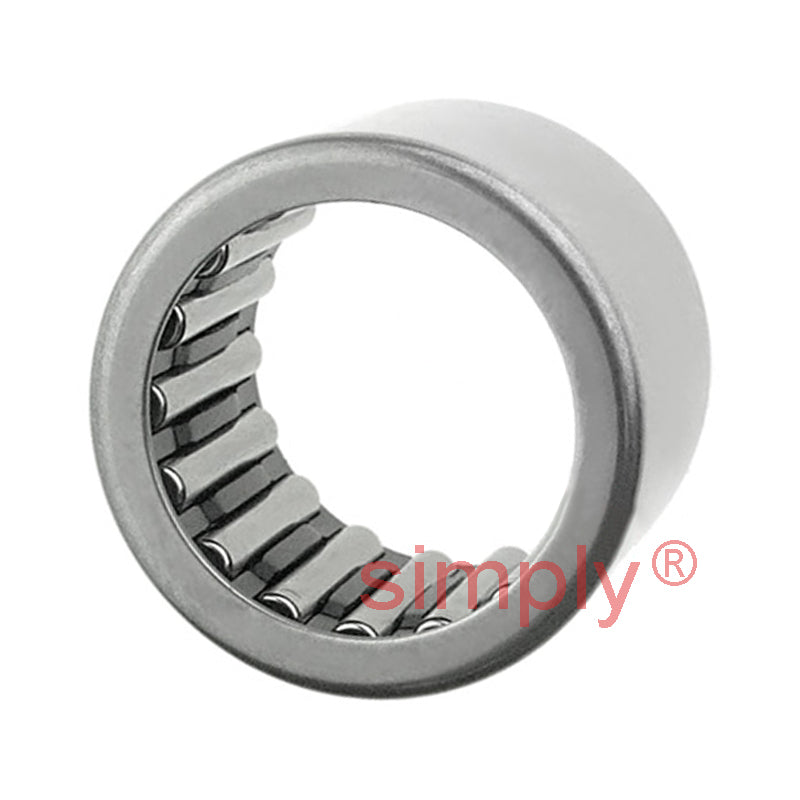

HK2816 Budget Drawn Cup Type Needle Roller Bearing Open End Type 28x35x16mm
HK2816 Budget Drawn Cup Type Needle Roller Bearing Open End Type 28x35x16mm
Regular price
€6,03
ex VAT
Regular price
Sale price
€6,03
ex VAT
Equivalent to: TLA2816Z RHNA283516
In stock
Price Break
10+
€4,58
19+
€4,33
29+
€4,28
39+
€4,22
49+
€4,17
74+
€4,12
99+
€3,86
199+
€3,81
249+
€3,76
499+
€3,71
999+
€3,61
Quantity
Couldn't load pickup availability
Description
Description
|
Budget HK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 28mm
- Outside Diameter:
- 35mm
- Width:
- 16mm
Technical
Technical
| Fw | 28mm |
|---|---|
| D | 35mm |
| C | 16mm |
| Dynamic load C | 15700 N |
| Static load Co | 26500 N |
| Fatigue load limit Pu | 3150 N |
| Speed in grease | 6700 rpm |
| Speed in oil | 9500 rpm |
| r1r2 min | 0.8mm |
| Da max | 30mm |
| ra max | 0.8mm |
| Inner ring | IR22x28x17 |
| Seal | G/SD28x35x4 |
| Weight | 29 g |
