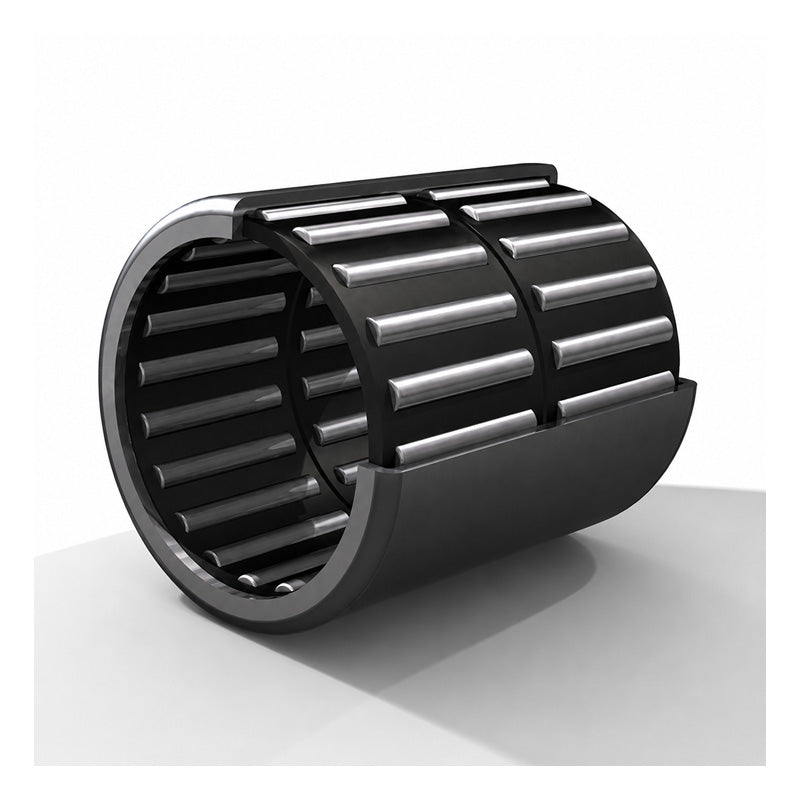

• NTN HK3038ZWD Drawn Cup Double Row Needle Roller Bearing with Open End 30x37x38mm
1 1

SKU: HK3038ZWD-NTN

NTN HK3038ZWD Drawn Cup Double Row Needle Roller Bearing with Open End 30x37x38mm

NTN HK3038ZWD Drawn Cup Double Row Needle Roller Bearing with Open End 30x37x38mm
€10,42 ex VAT
€10,42 ex VAT
Sale Sold out

In stock

Price Break
3+ €7,92
4+ €7,48
9+ €7,39
19+ €7,30
49+ €7,21
99+ €7,12
499+ €6,68
999+ €6,59
1999+ €6,50
2999+ €6,41
4999+ €6,23

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
P42V807W0N
Brand / Quality:
NTN - High Quality
Inside Diameter:
30mm
Outside Diameter:
37mm
Width:
38mm
Technical
Fw - Inside diameter 30mm
D - Outside diameter 37mm
C - Width of bearing, drawn cup or outer ring 38mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 2.5mm
Inner ring reference IR25X30X38.5
Cr - Dynamic load rating 38.5 kN
C0r - Static load rating 78.5 kN
N - Grease lubrication limit speed 5500 tr/min
N - Oil lubrication limit speed 8000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
