SKU: HK3520LL/3AS-NTN

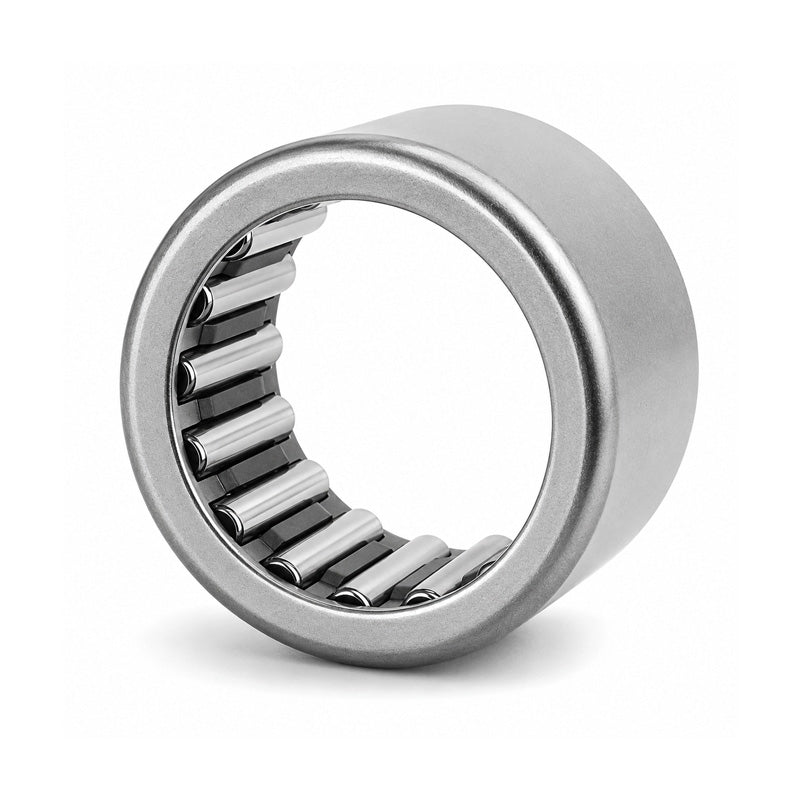

NTN HK3520LL/3AS Drawn Cup Needle Roller Bearing with Open End 35x42x20mm
NTN HK3520LL/3AS Drawn Cup Needle Roller Bearing with Open End 35x42x20mm
Regular price
€10,45
ex VAT
Regular price
Sale price
€10,45
ex VAT
In stock
Price Break
3+
€7,94
4+
€7,49
9+
€7,40
19+
€7,31
49+
€7,23
99+
€7,14
499+
€6,69
999+
€6,60
1999+
€6,51
2999+
€6,42
4999+
€6,24
Quantity
Couldn't load pickup availability
Share this product
Description
Description
HK Type Drawn Cup Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 42mm
- Width:
- 20mm
Technical
Technical
| Fw - Inside diameter | 35mm |
|---|---|
| D - Outside diameter | 42mm |
| C2 - Width of drawn cup LL | 20mm |
| C3 - Max drawn cup closed end thickness LL | 2.7mm |
| Lubrication hole on outer ring? | No |
| Cr - Dynamic load rating | 19.7 kN |
| C0r - Static load rating | 35 kN |
| N - Grease lubrication limit speed | 4600 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +100 Deg C |
