SKU: HK5528-MB

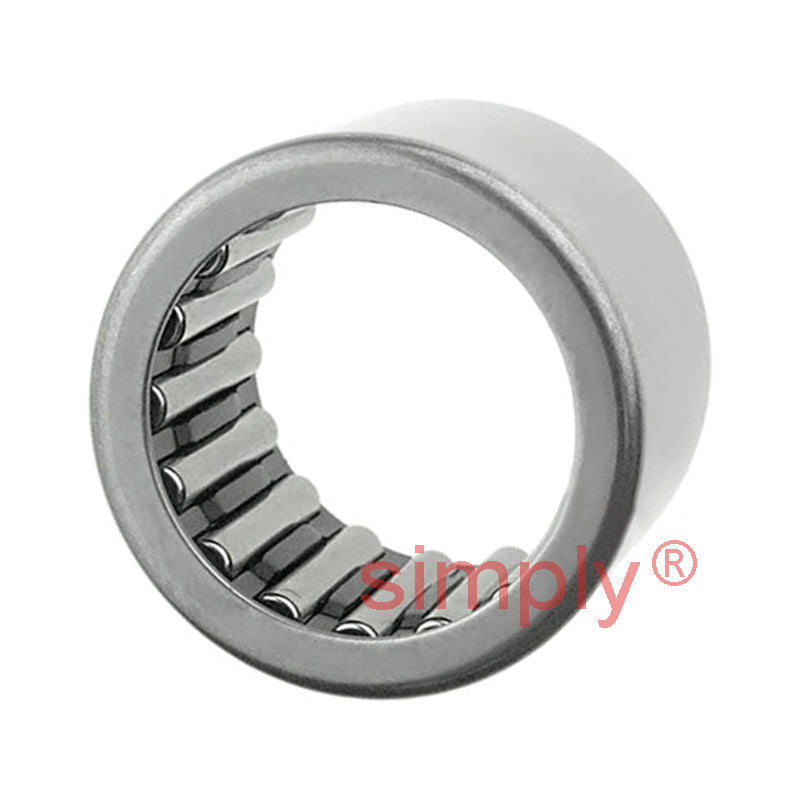

Major Brand HK5528 Drawn Cup Type Needle Roller Bearing with Two Open Ends 55x63x28mm
Major Brand HK5528 Drawn Cup Type Needle Roller Bearing with Two Open Ends 55x63x28mm
Regular price
€31,62
ex VAT
Regular price
Sale price
€31,62
ex VAT
In stock
Price Break
10+
€24,03
19+
€22,68
29+
€22,41
39+
€22,14
49+
€21,87
74+
€21,60
99+
€20,25
199+
€19,98
249+
€19,71
499+
€19,44
999+
€18,90
Quantity
Couldn't load pickup availability
Description
Description
|
HK Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 63mm
- Width:
- 28mm
Technical
Technical
| Fw | 55mm |
|---|---|
| D | 63mm |
| C | 28mm |
| Dynamic load | 41800 N |
| Static load | 104000 N |
| Fatigue load limit Pu | 12900 N |
| Speed in grease | 3600 rpm |
| Speed in oil | 5000 rpm |
| r1r2 min | 0.8mm |
| Da max | 58mm |
| ra max | 0.8mm |
| Weight | 11 g |
