• NTN HMK1616 Drawn Cup Needle Roller Bearing with Open End 16x24x16mm - Allow 2-3 Days
1 1

SKU: HMK1616-NTN

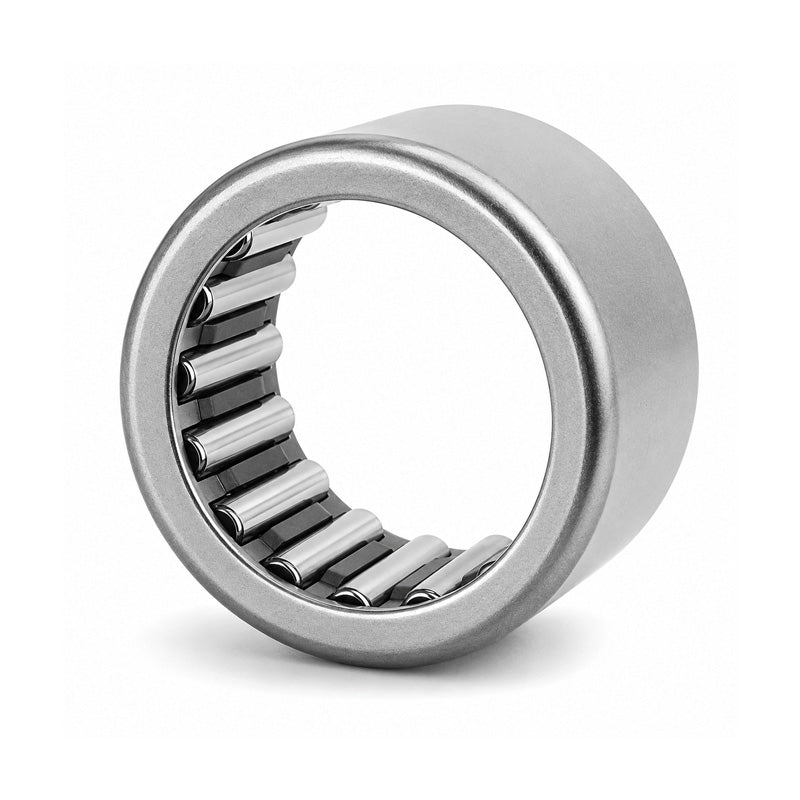

NTN HMK1616 Drawn Cup Needle Roller Bearing with Open End 16x24x16mm - Allow 2-3 Days

NTN HMK1616 Drawn Cup Needle Roller Bearing with Open End 16x24x16mm - Allow 2-3 Days
€7,74 ex VAT
€7,74 ex VAT
Sale Sold out

In stock

Price Break
3+ €5,88
4+ €5,55
9+ €5,49
19+ €5,42
49+ €5,35
99+ €5,29
499+ €4,96
999+ €4,89
1999+ €4,83
2999+ €4,76
4999+ €4,63

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
L4KMJQRI2W
Brand / Quality:
NTN - High Quality
Inside Diameter:
16mm
Outside Diameter:
24mm
Width:
16mm
Technical
Fw - Inside diameter 16mm
D - Outside diameter 24mm
C - Width of bearing, drawn cup or outer ring 16mm
Lubrication hole on outer ring? No
Inner ring reference IR12X16X20
Cr - Dynamic load rating 12.4 kN
C0r - Static load rating 13.5 kN
N - Grease lubrication limit speed 10000 tr/min
N - Oil lubrication limit speed 15000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
