SKU: HMV-110-EBF-HN-SNR

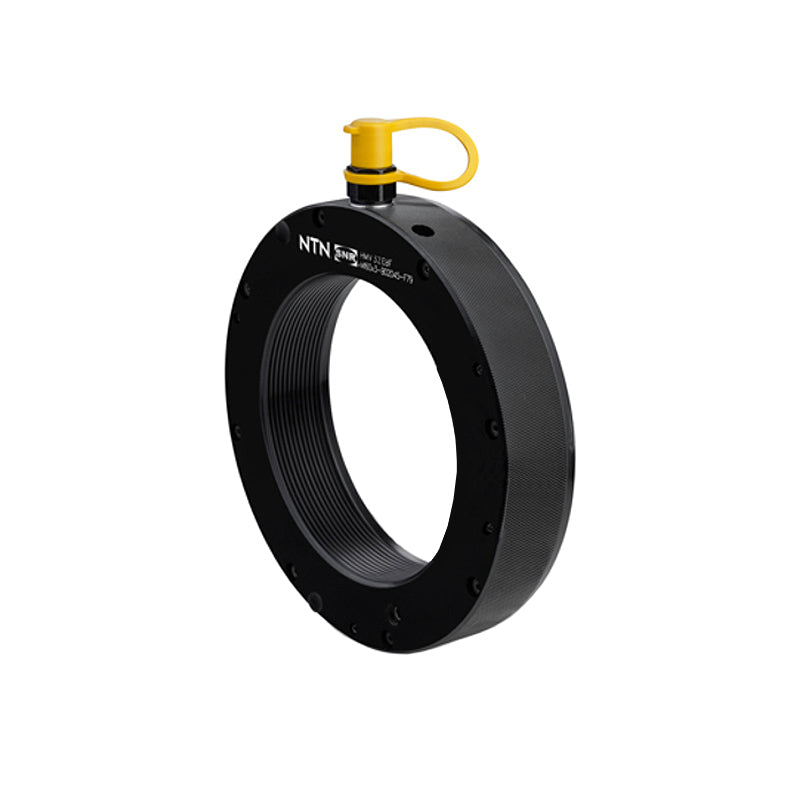

SNR HMV110 Metric Hydraulic Nut with Tr550x6 Thread - Allow 2-3 Days
- Regular price
- €7.810.43 ex VAT
- Sale price
- €7.810,43
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
3
€6.951.28
5
€6.560.76
9
€6.482.66
19
€6.404.55
49
€6.326.45
74
€6.248.34
99
€5.857.82
199
€5.779.72
249
€5.701.61
499
€5.623.51
999
€5.467.30
Description
SNR Hydraulic Nuts: These hydraulic nuts are an essential tool for easily mounting and dismounting spherical bearings that feature a tapered bore. These nuts provide reliable and accurate adjustment of the bearing's radial clearance. Also, these cost-effective nuts help to reduce downtime by being safe, easy to use and easy to install.
Benefits: Easy to use, Reduce downtime, Provide easy mounting and dismounting.
Technical
| HMV | = | HMV110 |
| Thread G | = | Tr550x6 |
| Outside Diameter D | = | 693mm |
| Total Width B | = | 83mm |
| Piston Diameter max. d2 | = | 687mm |
| Permitted Piston Stroke | = | 21mm |
| Flange Width B1 | = | 13mm |
| Body Width B2 | = | 70mm |
| Diameter d1 | = | 552mm |
| Piston Surface Area | = | 59150mm2 |
| Weight | = | 84.2kg |
