SKU: HMV-16-EBF-HN-SNR

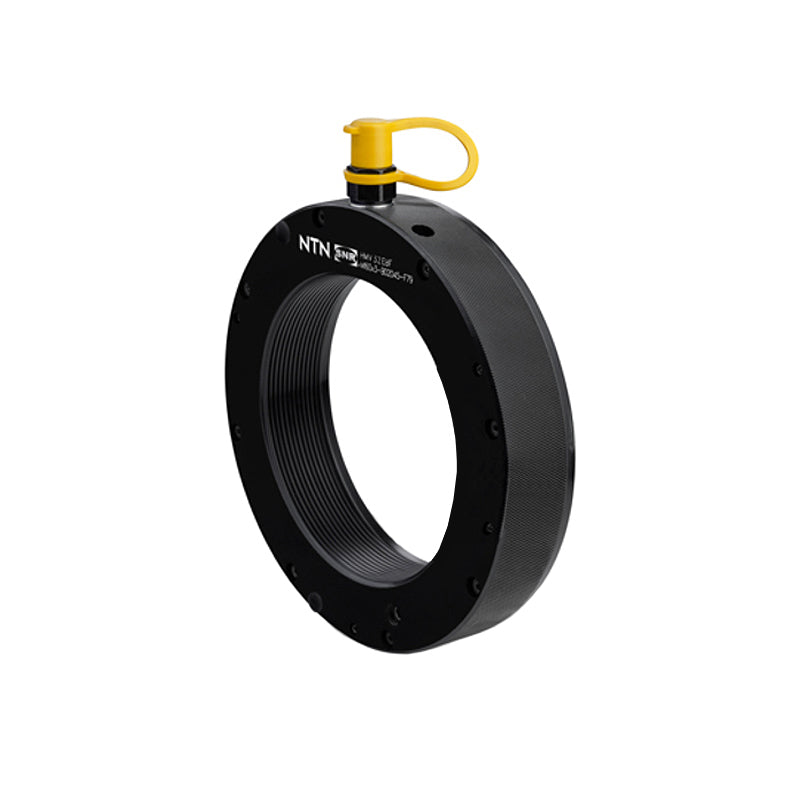

SNR HMV16 Metric Hydraulic Nut with M80x2 Thread - Allow 2-3 Days
SNR HMV16 Metric Hydraulic Nut with M80x2 Thread - Allow 2-3 Days
Out of stock
Share this product
Description
Description
SNR Hydraulic Nuts: These hydraulic nuts are an essential tool for easily mounting and dismounting spherical bearings that feature a tapered bore. These nuts provide reliable and accurate adjustment of the bearing's radial clearance. Also, these cost-effective nuts help to reduce downtime by being safe, easy to use and easy to install.
Benefits: Easy to use, Reduce downtime, Provide easy mounting and dismounting.
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- M80x2
- Inside Diameter:
- 80.5mm
- Outside Diameter:
- 146mm
- Width:
- 43mm
- Flange Width:
- 5mm
Technical
Technical
| HMV | HMV16 |
|---|---|
| Thread G | M80x2 |
| Outside Diameter D | 146mm |
| Total Width B | 43mm |
| Piston Diameter max. d2 | 142mm |
| Permitted Piston Stroke | 5mm |
| Flange Width B1 | 5mm |
| Body Width B2 | 38mm |
| Diameter d1 | 80.5mm |
| Piston Surface Area | 4150mm2 |
| Weight | 3.9kg |
