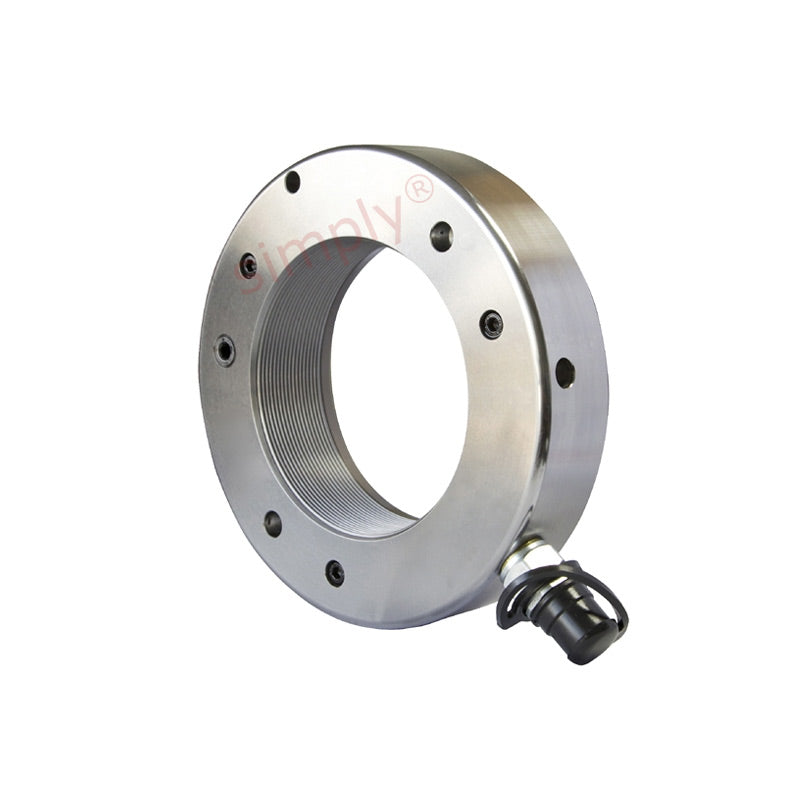

SKF HMV12E Metric Hydraulic Nut M60x2 Thread
SKF HMV12E Metric Hydraulic Nut M60x2 Thread
Regular price
€1.048,52
ex VAT
Regular price
Sale price
€1.048,52
ex VAT
In stock
Price Break
10+
€796,83
19+
€752,06
29+
€743,11
39+
€734,15
49+
€725,20
74+
€716,25
99+
€671,48
199+
€662,53
249+
€653,58
499+
€644,62
999+
€626,72
Quantity
Couldn't load pickup availability
Description
Description
|
SKF HMV..E Series Hydraulic Nut: Mounting bearings on tapered seatings can be a difficult and time-consuming job. Using an SKF Hydraulic Nut facilitates easy and quick application of the high drive-up forces required for mounting bearings. Dismounting bearings mounted on either adapter or withdrawal sleeves is also often a difficult and time-consuming job. These problems can be reduced with the use of an SKF Hydraulic Nut. Oil is pumped into the nut and the piston is pushed out with a force, which is sufficient to free the sleeve. Benefits: Quick connection coupling can be fitted on the face or side of the nut, allowing the nut to be used in areas where space is limited. Note: A spare set of piston seals and maintenance kit is supplied as standard. |
- Brand / Quality:
- SKF - High Quality
Technical
Technical
| G Thread | M60x2 |
|---|---|
| d1 | 60.5 |
| d2 | 115mm |
| d3 | 152mm |
| B | 38mm |
| B1 | 5mm |
| Permitted piston displacement | 5mm |
| Piston area | 3300mm2 |
