SKU: HMV14E-MB

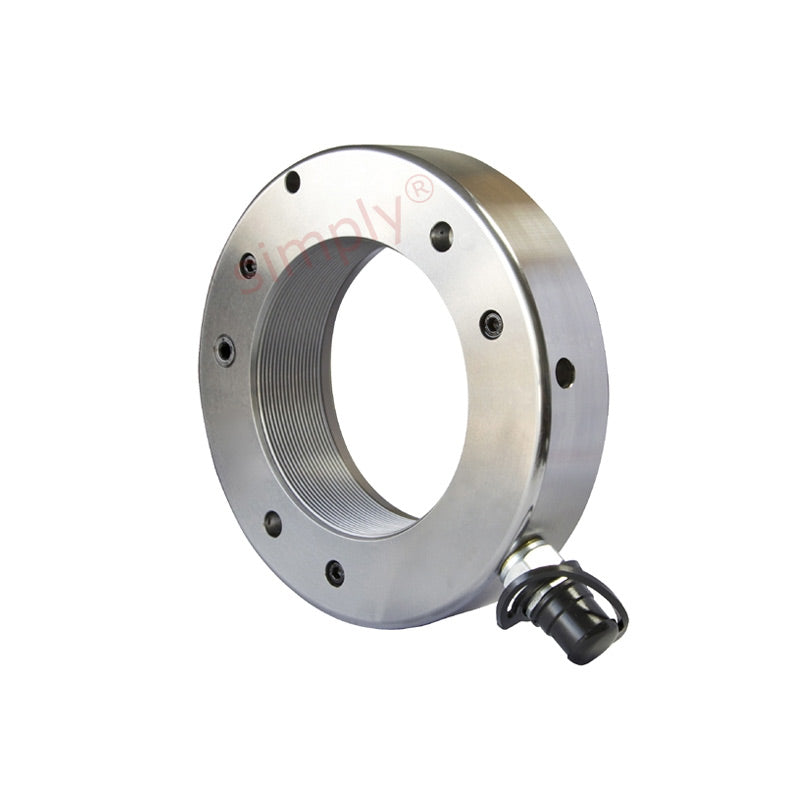

Major Brand HMV14E Metric Hydraulic Nut M70x2 Thread
Major Brand HMV14E Metric Hydraulic Nut M70x2 Thread
Out of stock
Description
Description
|
Major Branded HMV..E Series Hydraulic Nut: Mounting bearings on tapered seatings can be a difficult and time-consuming job. Using a Hydraulic Nut facilitates easy and quick application of the high drive-up forces required for mounting bearings. Dismounting bearings mounted on either adapter or withdrawal sleeves is also often a difficult and time-consuming job. These problems can be reduced with the use of an Hydraulic Nut. Oil is pumped into the nut and the piston is pushed out with a force, which is sufficient to free the sleeve. Benefits: Quick connection coupling can be fitted on the face or side of the nut, allowing the nut to be used in areas where space is limited. Note: A spare set of piston seals and maintenance kit is supplied as standard. |
- Brand / Quality:
- Major Brand - High Quality
Technical
Technical
| G Thread | M70x2 |
|---|---|
| d1 | 70.5 |
| d2 | 127mm |
| d3 | 135mm |
| B | 38mm |
| B1 | 5mm |
| Permitted piston displacement | 5mm |
| Piston area | 3800mm2 |
