SKU: HMV18E-SKF

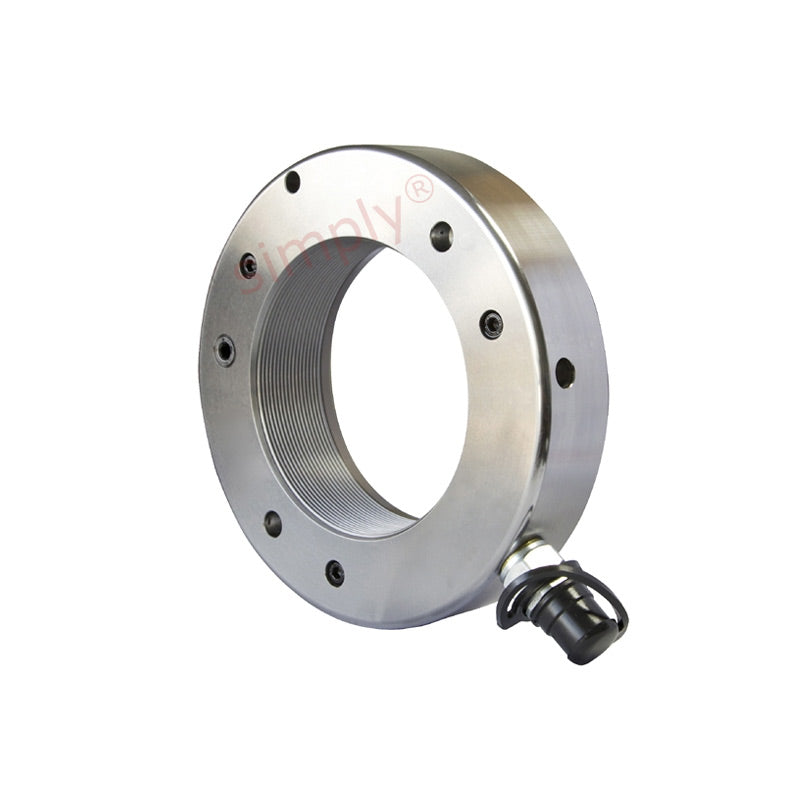

SKF HMV18E Metric Hydraulic Nut M90x2 Thread
SKF HMV18E Metric Hydraulic Nut M90x2 Thread
Regular price
€1.385,62
ex VAT
Regular price
Sale price
€1.385,62
ex VAT
In stock
Price Break
10+
€1.053,01
19+
€993,85
29+
€982,02
39+
€970,19
49+
€958,35
74+
€946,52
99+
€887,36
199+
€875,53
249+
€863,70
499+
€851,87
999+
€828,21
Quantity
Couldn't load pickup availability
Description
Description
|
SKF HMV..E Series Hydraulic Nut: Mounting bearings on tapered seatings can be a difficult and time-consuming job. Using an SKF Hydraulic Nut facilitates easy and quick application of the high drive-up forces required for mounting bearings. Dismounting bearings mounted on either adapter or withdrawal sleeves is also often a difficult and time-consuming job. These problems can be reduced with the use of an SKF Hydraulic Nut. Oil is pumped into the nut and the piston is pushed out with a force, which is sufficient to free the sleeve. Benefits: Quick connection coupling can be fitted on the face or side of the nut, allowing the nut to be used in areas where space is limited. Note: A spare set of piston seals and maintenance kit is supplied as standard. |
- Brand / Quality:
- SKF - High Quality
Technical
Technical

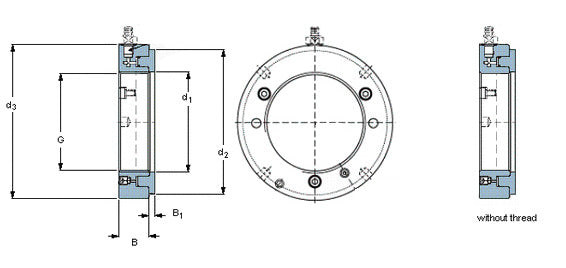

| G Thread | M90x2 |
|---|---|
| d1 | 90.5 |
| d2 | 147mm |
| d3 | 156mm |
| B | 38mm |
| B1 | 5mm |
| Permitted piston displacement | 5mm |
| Piston area | 4700mm2 |
