SKU: HMV19E-SKF

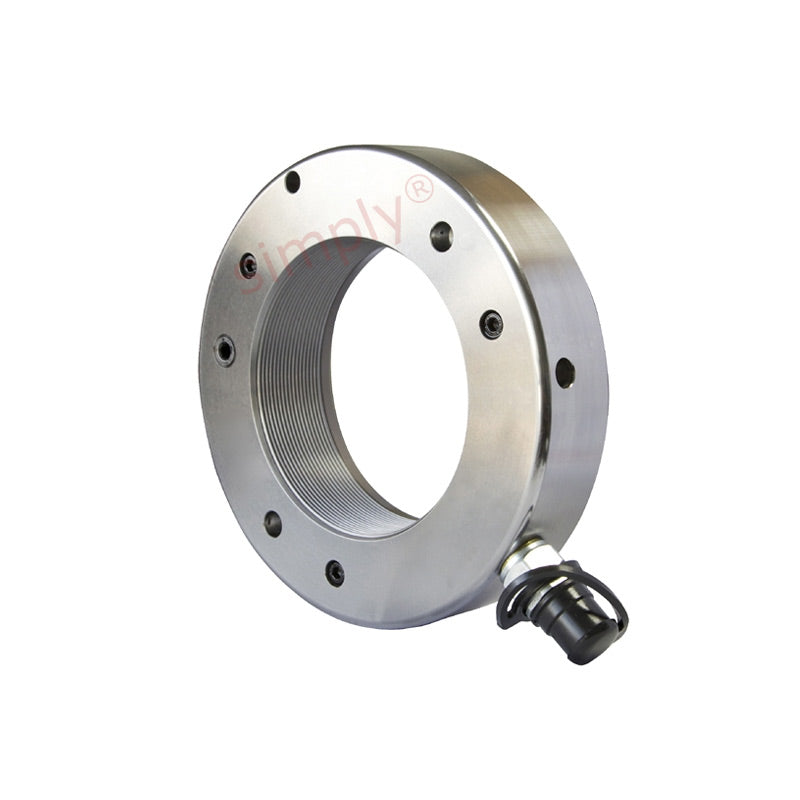

SKF HMV19E Metric Hydraulic Nut M95x2 Thread
SKF HMV19E Metric Hydraulic Nut M95x2 Thread
Regular price
€1.396,43
ex VAT
Regular price
Sale price
€1.396,43
ex VAT
In stock
Price Break
10+
€1.061,22
19+
€1.001,60
29+
€989,68
39+
€977,75
49+
€965,83
74+
€953,91
99+
€894,29
199+
€882,36
249+
€870,44
499+
€858,51
999+
€834,67
Quantity
Couldn't load pickup availability
Description
Description
|
SKF HMV..E Series Hydraulic Nut: Mounting bearings on tapered seatings can be a difficult and time-consuming job. Using an SKF Hydraulic Nut facilitates easy and quick application of the high drive-up forces required for mounting bearings. Dismounting bearings mounted on either adapter or withdrawal sleeves is also often a difficult and time-consuming job. These problems can be reduced with the use of an SKF Hydraulic Nut. Oil is pumped into the nut and the piston is pushed out with a force, which is sufficient to free the sleeve. Benefits: Quick connection coupling can be fitted on the face or side of the nut, allowing the nut to be used in areas where space is limited. Note: A spare set of piston seals and maintenance kit is supplied as standard. |
- Brand / Quality:
- SKF - High Quality
Technical
Technical
| G Thread | M95x2 |
|---|---|
| d1 | 95.5 |
| d2 | 153mm |
| d3 | 162mm |
| B | 38mm |
| B1 | 5mm |
| Permitted piston displacement | 5mm |
| Piston area | 4900mm2 |
